| Place of Origin: | CHINA |
| Brand Name: | CNJS |
| Certification: | ISO9001 |
| Model Number: | CNJS-Y-4000 |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | NEGOTIATION |
| Packaging Details: | wooden case |
| Delivery Time: | 20-45 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20 sets per month |
| Highlight: | Onsite Sodium Hypochlorite Generation System,Production Of Sodium Hypochlorite |
||
|---|---|---|---|
Chemical Disinfectant On Site Sodium Hypochlorite Generation Water Treatment
Principle:
CNJS - Y series NaClO generator is a new type of NaClO solution for field production equipment , suitable for all kinds of needs NaClO disinfected venues. Its working principle is:
the sodium chloride solution under the certain voltage effect of the cell, a series of electrochemical reaction within the cell and the resulting solution is the NaClO solution. The main process can be simplified as follows:
Electrode reaction:
anode:2Cl--2e→Cl2
cathode:2H++2e→H2
Solution:2NaOH+Cl2→NaCl+NaClO+H2O
Technical parameters:
|
Type |
Power(V/Hz) |
concentration of liquid(mg/l) |
available chlorine (Kg/h) |
Flow (m3/h) |
Salt consumption (kg/d) |
Water consumption (m3/d) |
Power consumption (kw) |
Size(m) (l×w×h) |
|
CNJS-Y4000 |
380V/50Hz |
7-9 |
4 |
0.375 |
252 |
9 |
17.5 |
1200*860*1950 |
Product features:
> Inlet water temperature : -10 ℃ ～+50℃ ； > Inlet water pressure : 0.2-0.4Mpa；
> Salt consumption: 3.5kg/kg Cl2 ; > Water consumption : 125L/kg Cl2；
> electrolyte temperature rise : <5 ℃ ；
> Rated current: Determined according to the selected product model;
Work flow chart :

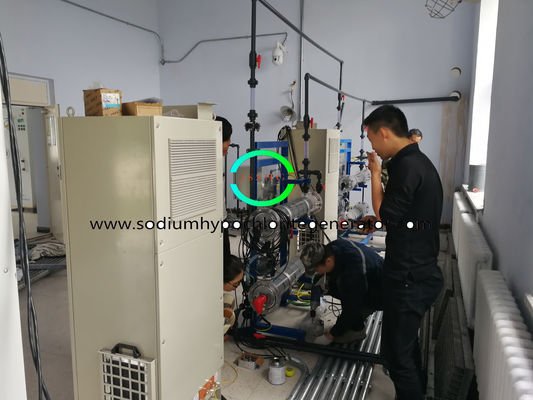

Automatic sodium hypochlorite generator system fully automatic production, contains the system
|
Automatic dissolving salt tank :Including salt tank , liquid level control , dissolving salt pump , electric valves , piping and other components which could automatic transmission salt , dissolving salt , saturated brine
|
|
Saturated brine filter :Including stainless steel two precision filter ,primary filtering accuracy 50um, secondary filtration precision 5um, use PP filter , the filter can be easily replaced, ensure clean brine
|
|
Dilute brine tank :The saturated brine and production water has been diluted with 2.5 % weak brine water , for the power solutions
|
|
Sodium hypochlorite generator host machine :Including electrolytic cell , electrolysis power , intelligent control center PLC , the control element, man-machine interface , PC communication module, the operator panel, the host stand, electric valves, electrical power distribution system
|
|
,Sodium hypochlorite solution storage tank :including hydrogen storage tank , exhaust equipment
|
|
Automatic dosing and on-line monitoring system: including the inverter , corrosion metering dosing pump , online residual chlorine monitor , and the closed-loop control of chlorine
|
|
Online instrument series : Production water pressure monitoring , dilute brine online salinity monitoring , temperature controller , flammable gas monitoring sensor , these monitoring instruments are all included alarm signal output
|
Advantage of on-site sodium hypochlorite generator
|
Disinfection method |
Security
|
|
On-site prepared NaCIO |
The safest chemical disinfection method , environmental non-toxic , liquid dosing |
|
Liquid chlorine |
Chlorine is highly toxic, very strong. corrosive , Chlorine transportation , storage unsafe, easily cause leaks and explosions, harm to human life and the environment
|
|
Commercial NaCIO |
Dangerous goods, unsafe to transport and storage , When stored easily degradable and the storage time is short. High transport costs, the liquid dosing
|
|
Chlorine Dioxide |
Compound type reaction was not complete, dosing by-product exceeded; high purity type operating costs, are not suitable for medium-sized water plant
|
