| Place of Origin: | CHINA |
| Brand Name: | JSSHG |
| Certification: | ISO9001 |
| Model Number: | CNJS-500 |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | NEGOTIATION |
| Packaging Details: | wooden case |
| Delivery Time: | 20-45 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20 SETS PER MONTH |
| Available Chlorine: | 0.8 % | Power Input: | 220V, 50Hz |
|---|---|---|---|
| Inlet Water Temperature: | 5-27℃ | Inlet Water Pressure: | 0.2-0.4Mpa |
| Salt Consumption: | 3.5kg/kg Cl2 | Water Consumption: | 125L/kg Cl2 |
| Electrolytic Liquid: | 2.5~3% Weak Brine | ||
| Highlight: | Onsite Sodium Hypochlorite Generation System,Production Of Sodium Hypochlorite |
||

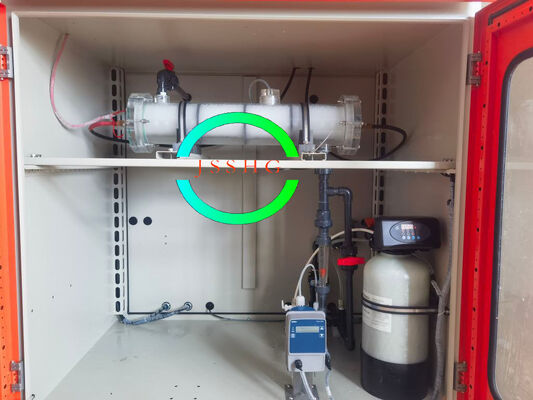

1000 g / h Multifunctional On Site Sodium Hypochlorite Generation System
Product introduction:
Generation principle : CNJS - L series NaClO generator is a new type of NaClO solution for field production equipment , suitable for all kinds of needs NaClO disinfected venues . Its working principle is: the sodium chloride solution under the certain cell voltage function, in a series of electrochemical reaction occurs in the cell , the resulting NaClO solution , including the generation of NaClO through chemical equation can be expressed as follows :
NaCl+H2O+DC→NaClO+H2 ↑
The electrode reaction:
anode:2Cl--2e→Cl2
cathode:2H++2e→H2
solution:2NaOH+Cl2→NaCl+NaClO+H2O
Technical parameters:
|
Type |
Power(V/Hz) |
concentration of liquid(mg/l) |
available chlorine (Kg/h) |
Flow (m3/h) |
Salt consumption (kg/d) |
Water consumption (m3/d) |
Power consumption (kw) |
Size(m) (l×w×h) |
|
CNJS-Y1000 |
380V/50Hz |
7-9 |
1 |
0.13 |
84 |
3 |
4.5 |
900*700*1780 |
Work flow chart:
Product system:
Generator part : Including generator , exchange heat ( options ) , Siemens touch screen and control system , etc.
Storage Tank Part : Including NaClO tank, blower fan , Level gauge , Hydrogen gas detector, etc .
