| Place of Origin: | CHINA |
| Brand Name: | CNJS |
| Certification: | ISO9001 |
| Model Number: | CNJS-Y-15000 |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | NEGOTIATION |
| Packaging Details: | wooden case |
| Delivery Time: | 20-45 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20 sets per month |
| Highlight: | Onsite Sodium Hypochlorite Generation System,Production Of Sodium Hypochlorite |
||
|---|---|---|---|

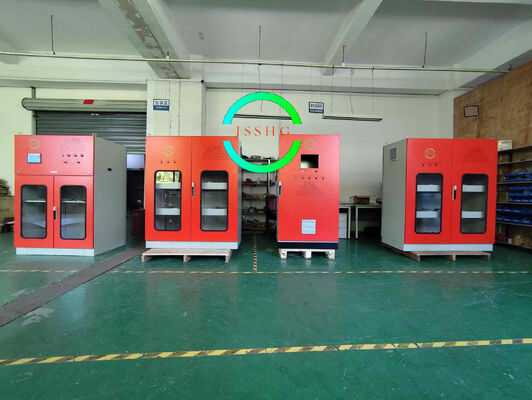

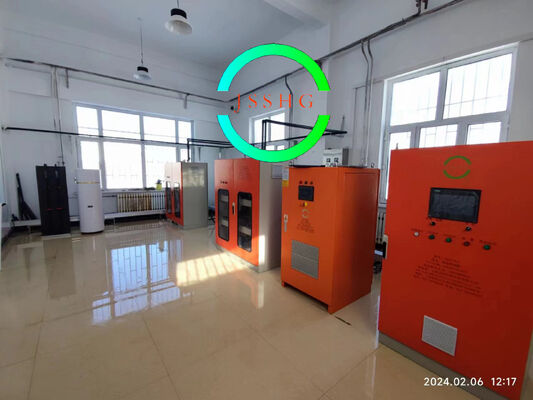

Titanium Integrated 8000 ppm Sodium Hypochlorite Production Plant 15 Kg / h
Principle:
CNJS - Y series NaClO generator is a new type of NaClO solution for field production equipment , suitable for all kinds of needs NaClO disinfected venues. Its working principle is:
the sodium chloride solution under the certain voltage effect of the cell, a series of electrochemical reaction within the cell and the resulting solution is the NaClO solution. The main process can be simplified as follows:
Solution:2NaOH+Cl2→NaCl+NaClO+H2O
Technical parameters:
|
Type |
Power(V/Hz) |
concentration of liquid(mg/l) |
available chlorine (Kg/h) |
Flow (m3/h) |
Salt consumption (kg/d) |
Water consumption (m3/d) |
Power consumption (kw) |
Size(m) (l×w×h) |
|
CNJS-Y15000 |
380V/50Hz |
7-9 |
15 |
1.88 |
1260 |
45 |
50 |
1760*860* 1950 |
Work flow chart :
Automatic sodium hypochlorite generator system fully automatic production, contains the system
|
Automatic dissolving salt tank :Including salt tank , liquid level control , dissolving salt pump , electric valves , piping and other components which could automatic transmission salt , dissolving salt , saturated brine
|
|
Saturated brine filter :Including stainless steel two precision filter ,primary filtering accuracy 50um, secondary filtration precision 5um, use PP filter , the filter can be easily replaced, ensure clean brine
|
|
Dilute brine tank :The saturated brine and production water has been diluted with 2.5 % weak brine water , for the power solutions
|
|

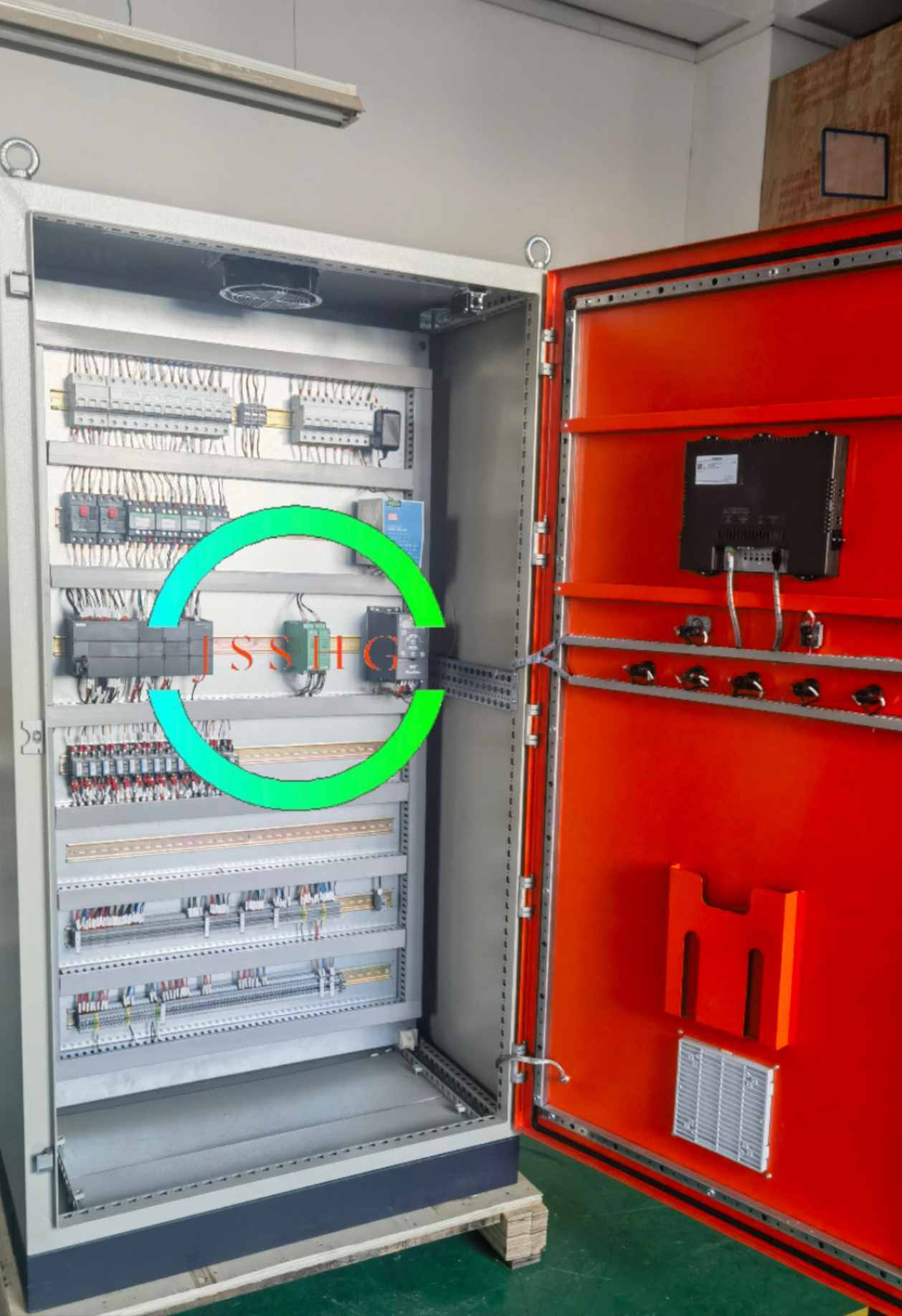

Sodium hypochlorite generator host machine :Including electrolytic cell , electrolysis power , intelligent control center PLC , the control element, man-machine interface , PC communication module, the operator panel, the host stand, electric valves, electrical power distribution system
|
|
Sodium hypochlorite solution storage tank :including hydrogen storage tank , exhaust equipment
|
|
Sodium hypochlorite solution storage tank :including hydrogen storage tank , exhaust equipment
|
|
Online instrument series : Production water pressure monitoring , dilute brine online salinity monitoring , temperature controller , flammable gas monitoring sensor , these monitoring instruments are all included alarm signal output
|
Advantage on CNJY Products :
details:

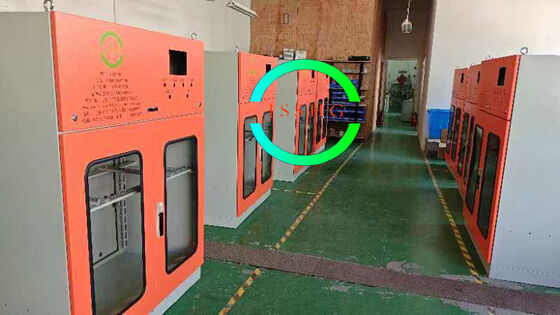

Workshop :
