ISO9001 On Site Sodium Hypochlorite Generation With 200G Out put Active Chlorine

Product Details:

Place of Origin:	CHINA
Brand Name:	CNJS
Certification:	ISO9001
Model Number:	CNJS-S

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	NEGOTIATION
Packaging Details:	wooden case
Delivery Time:	7-15 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100 SETS /month

Contact Now

Detailed Product Description

Available Chlorine:	7.0-9.0 G / L	Power Input:	220V, 50Hz
Inlet Water Temperature:	5-27℃	Inlet Water Pressure:	0.2-0.4Mpa
Salt Consumption:	3.5kg/kg Cl2	Water Consumption:	125L/kg Cl2
Electrolytic Liquid:	2.5~3% Weak Brine	Content Available CL:	7000~9000ppm
Rated Current:	Determined According To The Selected Product Model
High Light:	Hypochlorite Generator Sea Water , Onsite Sodium Hypochlorite Generation System

Sodium Hypochlorite System With 200Gh/ Out put Active Chlorine

Technical parameters:

Type	Av.CL2 Capacity (g/h)	Flow Rate (L/h)	Salt Consumption (kg/d)	Water Consumption (m3/d)	Rated power (kw )	Unite size (L×W×H) (mm)
CNJS-S-100	100	13	8.4	0.31	0.6	1200×800×1400
CNJS-S-200	200	25	16.8	0.6	1.2	1200×800×1400
CNJS-S-300	300	38	25.2	0.91	1.8	1200×800×1400
CNJS-S-400	400	50	33.6	1.2	2.4	1200×800×1400
CNJS-S-500	500	63	42	1.51	3	1200×800×1400

Note:System requirements with salt and water

Salt requirements:
Name		Request content( %)
(NaCl)		>99.3 %
(Fe)		<0.002%
(Ca Mg)		<0.023%
(Mn)		<0.00003%
(Pb)		<0.0007%
(Cu)		<0.0003%
(F)		<0.01%
	Water requirements: 1)Operating water temperature: The temperature between (18˚C-23˚C)is best. If do not use temperature regulation, please allow the temperature between (10˚C-27˚C),or a heating exchanger or chiller equipment to be used for adjust the water temperature. 2)Operating water pressure: Minimum 0.2 MPa, Maximum 0.35 Mpa, if not in this scope, need to increase a he pressure or vacuum equipment 3)water quality requirements: pH 6.5 to 8.5 hardness[in calcium carbonate] < 5 ppm (soft water equipment outlet) COD(Mn) < 1.5 ppm Fe < 0.2 ppm Mn < 0.01 ppm Ni < 5 ppm F <2 ppm Cu < 5 ppb

Product introduction:

Generation principle:

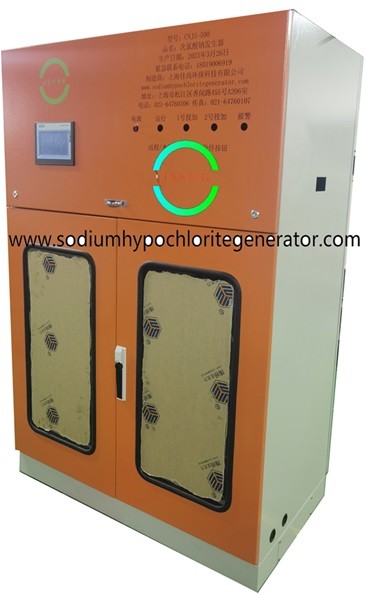

The revolutionary CNJS-S series sodium hypochlorite generator is a newly and for on-site product of NaClO equipment and use for all kinds of needed NaClO disinfected. Its working principle is :the sodium chloride solution under the certain voltage effect of the cell, a series of electrochemical reaction within the cell and the resulting solution is the NaClO solution. The main process can be simplified as follows:

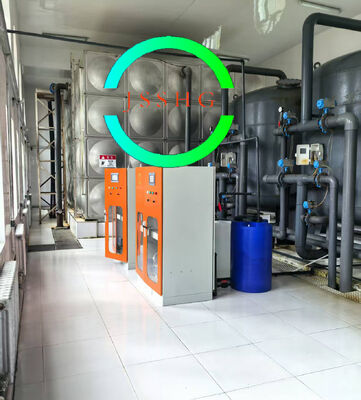

ISO9001 On Site Sodium Hypochlorite Generation With 200G Out put Active Chlorine
The electrode reaction:
anode:2Cl--2e→Cl₂
cathode:2H++2e→H₂
solution:2NaOH+Cl₂→NaCl+NaClO+H₂O

Work flow chart:

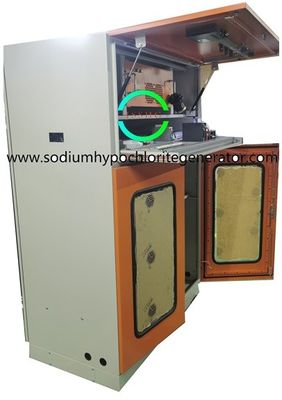

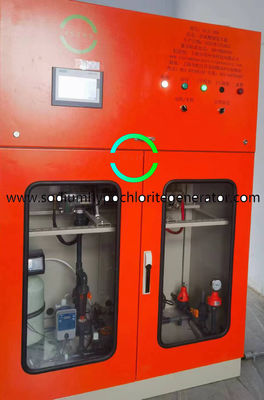

Product components system

A,inlet water distribution system
Main components: water pressure gauge, water softener, soft water pump, water meter, salt tank, salt water pump and related piping and valves.

B,The power control system:
Including control cabinet, rectifier and cable connection.

C,Storage and dosing system
Including electrolytic cell, NaClO tank, dosing pump, piping and valves.

Advantage of on-site sodium hypochlorite generator

SAFETY:
Material safety: Salt, Water and Electricity as raw materials, no need for transportation of dangerous chemicals;
Process safety: No risk of chlorine leakage and reactor explosion, safety for operator;
Product safety: Product-0.8% NaCIO solution, has the advantage of stable and safety, cost effective in operation and no attenuation in storage.
ENERGY-SAVING:
Make use of electricity in the off-peak period to generate the NaCIO solution.
ENVIRONMENTAL PROTECTION:
Avoid of usage, transportation of dangerous chemical material.
High current efficiency ,few by-product, safe H₂ ventilation.
ECONOMY:
JIASHANG equipment can largely reduce the operation cost compared to the bulk hypochlorite
