| Place of Origin: | CHINA |
| Brand Name: | CNJS |
| Certification: | ISO9001 |
| Model Number: | CNJS-S-300 |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | NEGOTIATION |
| Packaging Details: | wooden case |
| Delivery Time: | 7-15 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100 SETS /month |
| Available Chlorine: | 0.8% | Power Input: | 220V, 50Hz |
|---|---|---|---|
| Inlet Water Temperature: | 5-27℃ | Inlet Water Pressure: | 0.2-0.4Mpa |
| Electrolytic Liquid: | 2.5~3% Weak Brine | Content Available CL: | 7000~9000ppm |
| Rated Current: | Determined According To The Selected Product Model | ||
| Highlight: | Hypochlorite Generator Sea Water,Onsite Sodium Hypochlorite Generation System |
||

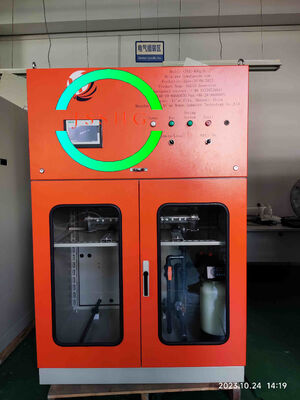

300 g / h Sodium Hypochlorite Generator Electrolysis Form Brine Salt Solution
Technical parameters:
|
TYPE |
Available chlorine (g/h) |
flow (L/h) |
Salt consumption (kg/H) |
Rated power (kw) |
Size (mm) (L×W×H) |
|
CNJS-S300 |
300 |
38 |
0．7 |
2 |
1280*1980*1260 |
Product feature :
Chlorine concentration brine :2.5%
Power consumption : less than 3.5KW/ kg
Content available CL :7000~9000ppm
Working way : Unattended , fully automatic operation
Life expectancy of anode coating : more than 5 years, and anode coating can be coated and used repeatedly
Life expectancy of the electrode plates:more than 20 years
Life expectancy of whole machine : more than 15 years
Product introduce:
1, Generation principle :
CNJS – S series NaClO generator is a new type of NaClO solution for field production equipment , suitable for all kinds of needs NaClO disinfected venues . Its working principle is: the sodium chloride solution under the certain cell voltage function, in a series of electrochemical reaction occurs in the cell , the resulting NaClO solution , including the generation of NaClO through chemical equation can be expressed as follows :
The electrode reaction:
anode:2Cl--2e→Cl2
cathode:2H++2e→H2
solution:2NaOH+Cl2→NaCl+NaClO+H2O
Work flow chart :

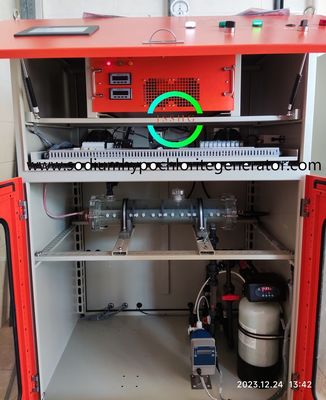

Product system :
Preparation of brine , and filtering
Mainly includes concentrated brine tank , dilute brine tank , pump, secondary PP material , 5 um level precision filter, salt can be completely filtering impurities.
Storage and dosing system
Mainly includes storage tank, hydrogen detector, dosing pump, on-line monitoring, etc.
Electrode part
Mainly includes the electrode slice ,terminal and the protector.
Power part
Mainly includes the high frequency power switch and controller.
Why choose on CNJS Technology
|
CNJS Technology |
Other brand |
|
|
Generator fixed way |
All moulds are fixed, equipment installation is more stable |
With simple metal ring, need to reinforce the equipment |
|
Structure of electrode slices |
Bipolar type, in series, big gap, large flux |
Bipolar type, small gap, small flux |
|
Thickness of electrodes |
2mm |
1.5mm |
|
Electrode coating technology |
Nano - coated up to 20 ruthenium iridium oxide particles , coating thickness of 2- microns , 25 times of coating can ensure positive side high producing and long life |
Normal ruthenium iridium thickness thin, easy to deformation. |
|
Electrode gap |
Big gap and flux |
Small gap and flux |
|
H2 discharge |
Two gradually exhaust, install the detector |
One way, Rising concentrations in tube and not safe |
|
Dosing accuracy |
Multilayer additive form, adding the high precision |
Quantitative dosing, water data is not stable |
|
Intelligent control |
Truly intelligent, fully integrated modular structure |
Distributed assembly, intelligent poor |
|
Power system |
Using marine-grade high-frequency voltage constant current power supply, low heat, stable and integrated and equipment |
SCR ballast, large energy consumption, no security, occupy space, poor stability |
|
Pickling process |
Small devices not pickling, large equipment protection pickling mobile devices |
Small equipment to pickling, large equipment pickling less protection |
|
The man-machine interface |
Small devices with Siemens touch screen, large equipment with industrial man-machine interface |
Small equipment without man- machine interface, large equipment with normal interface |
|
The PLC program |
All size equipment configuration of the PLC, unattended and intelligent control. |
Small equipment without PLC, often appear effluent water not stable |
|
Security |
Fully enclosed structure, high stability and high safety of the equipment |
All the equipment and instruments outside naked, fragile and aging |
|
Life expectancy of the electrode |
More than 8 years |
Less than 5 years |
|
Warranty time |
15 years |
10 years |
