Principle:



    CNJS - L series NaClO generator is a new type of NaClO solution for field production equipment , suitable for all kinds of needs NaClO disinfected venues. Its working principle is:

  the sodium chloride solution under the certain voltage effect of the cell, a series of electrochemical reaction within the cell and the resulting solution is the NaClO solution. The main process can be simplified as follows:

                                                                            Electrode reaction:

anode:2Cl--2e→Cl2

cathode:2H++2e→H2

Solution:2NaOH+Cl2→NaCl+NaClO+H2O

Technical parameters:

Type Power(V/Hz) concentration of liquid(mg/l) available chlorine (Kg/h) Flow (m3/h) Salt consumption (kg/d) Water consumption (m3/d) Power consumption   (kw) Size(m)      (l×w×h) CNJS-L3000 380V/50Hz 7-9 3 0.375 252 9 17.5 900*700*1780



Product features:

> Inlet water temperature : -10 ℃ ～+50℃ ；         > Inlet water pressure : 0.2-0.4Mpa；

> Salt consumption: 3.5kg/kg Cl2 ;                            > Water consumption : 125L/kg Cl2；

> electrolyte temperature rise :   <5 ℃ ；

> Rated current: Determined according to the selected product model;



Work flow chart :

Automatic sodium hypochlorite generator system fully automatic production, contains the system



A,Automatic dissolving salt tank :Including salt tank , liquid level control , dissolving salt pump , electric valves , piping and other components which could automatic transmission salt , dissolving salt , saturated brine

B,Saturated brine filter :Including stainless steel two precision filter ,primary filtering accuracy 50um, secondary filtration precision 5um, use PP filter , the filter can be easily replaced, ensure clean brine ;

C,Dilute brine tank :The saturated brine and production water has been diluted with 2.5 % weak brine water , for the power solutions

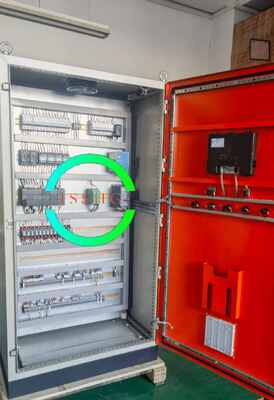

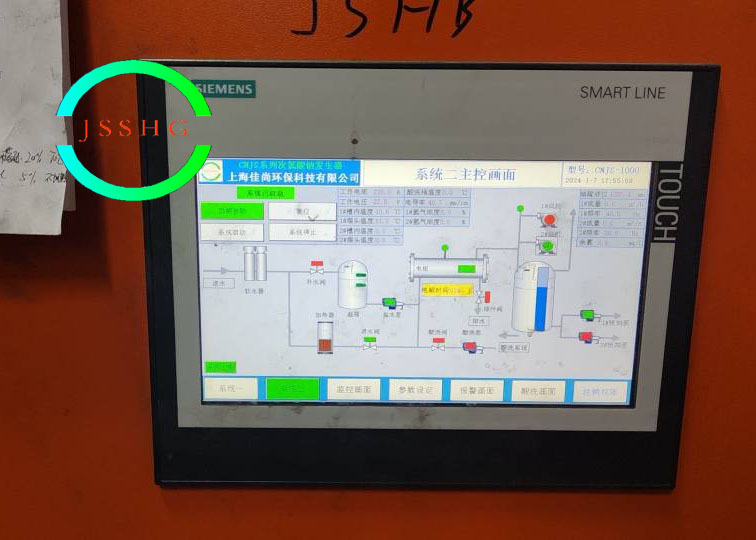

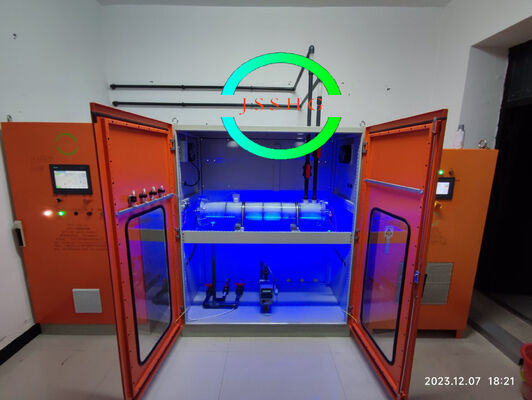

D,Sodium hypochlorite generator host machine :Including electrolytic cell , electrolysis power , intelligent control center PLC , the control element, man-machine interface , PC communication module, the operator panel, the host stand, electric valves, electrical power distribution system

E,Sodium hypochlorite solution storage tank :including hydrogen storage tank , exhaust equipment

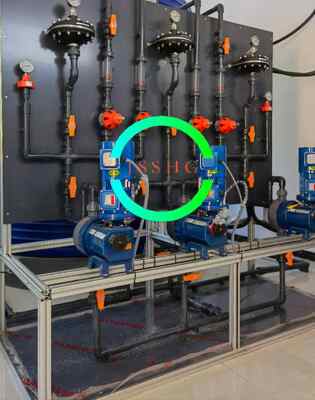

F,Automatic dosing and on-line monitoring system: including the inverter , corrosion metering dosing pump , online residual chlorine monitor , and the closed-loop control of chlorine

G,Online instrument series : Production water pressure monitoring , dilute brine online salinity monitoring , temperature controller , flammable gas monitoring sensor , these monitoring instruments are all included alarm signal output





Advantage of on-site sodium hypochlorite generator



Disinfection method	Security
On-site prepared NaCIO	The safest chemical disinfection method , environmental non-toxic , liquid dosing
Liquid chlorine	Chlorine is highly toxic, very strong. corrosive , Chlorine transportation , storage unsafe, easily cause leaks and explosions, harm to human life and the environment
Commercial NaCIO	Dangerous goods, unsafe to transport and  storage , When stored easily degradable and the storage time is short. High transport costs, the liquid dosing
Chlorine Dioxide	Compound type reaction was not complete, dosing by-product exceeded; high purity type operating costs, are not suitable for medium-sized water plant



Details :

  CNJS Technology : Full framework of alumina , corrosion resistance,

Compressive strength , impact resistance

Never rust , design life for more than 50 years







Other brand :

 Full channel structure , no corrosion , easy to deformation and rust , after half year the framework like above figure , the useful life is  only three years.
