Split Type NaClO Solution Sodium Hypochlorite Generator 2 Kg / h Environmental Protection

Split Type NaClO Solution Sodium Hypochlorite Generator 2 Kg / h Environmental Protection

    • Split Type NaClO Solution Sodium Hypochlorite Generator 2 Kg / h Environmental Protection
    • Split Type NaClO Solution Sodium Hypochlorite Generator 2 Kg / h Environmental Protection
    • Split Type NaClO Solution Sodium Hypochlorite Generator 2 Kg / h Environmental Protection
  • Split Type NaClO Solution Sodium Hypochlorite Generator 2 Kg / h Environmental Protection

    Product Details:

    Place of Origin: CHINA
    Brand Name: CNJS
    Certification: ISO9001
    Model Number: CNJS-L-2000

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: NEGOTIATION
    Packaging Details: wooden case
    Delivery Time: 20-45 work days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 20 SETS PER MONTH
    Contact Now
    Detailed Product Description
    Available Chlorine: 0.8 % Inlet Water Temperature: 5-27℃
    Inlet Water Pressure: 0.2-0.4Mpa Salt Consumption: 3.5kg/kg Cl2
    Water Consumption: 125L/kg Cl2 Electrolytic Liquid: 2.5~3% Weak Brine
    Highlight:

    Onsite Sodium Hypochlorite Generation

    ,

    Sodium Hypochlorite Solution For Disinfection



    Split Type NaClO Solution Sodium Hypochlorite Generator 2 Kg / h Environmental Protection





    Product introduction:



    Generation principle :CNJS - L series NaClO generator is a new type of NaClO solution for field production equipment , suitable for all kinds of needs NaClO disinfected venues . Its working principle is: the sodium chloride solution under the certain cell voltage function, in a series of electrochemical reaction occurs in the cell , the resulting NaClO solution , including the generation of NaClO through chemical equation can be expressed as follows :



                                                            NaCl+H2O+DC→NaClO+H2





    The electrode reaction:

    anode:2Cl--2e→Cl2

    cathode:2H++2e→H2

    solution:2NaOH+Cl2→NaCl+NaClO+H2O




    Technical parameters:



    Type

    Power(V/Hz)

    concentration of liquid(mg/l)

    available chlorine (Kg/h)

    Flow (m3/h)

    Salt consumption (kg/d)

    Water consumption (m3/d)

    Power consumption   (kw)

    Size(m)      (l×w×h)

    CNJS-L2000

    380V/50Hz

    0.8 %

    2

    0.25

    168

    6



    900*700*1780





    Work flow chart:



    Split Type NaClO Solution Sodium Hypochlorite Generator 2 Kg / h Environmental Protection

    Product system:

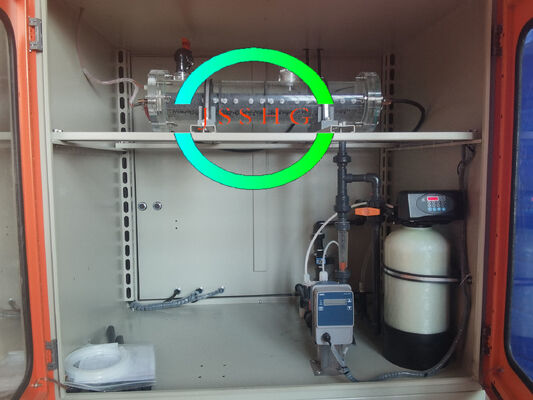

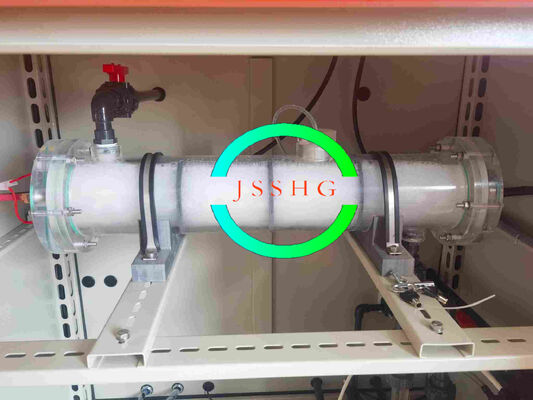

    Generator part : Including generator , exchange heat ( options ) , Siemens touch screen and control system , etc.



                                                                   Split Type NaClO Solution Sodium Hypochlorite Generator 2 Kg / h Environmental Protection



    Storage Tank Part : Including NaClO tank, blower fan , Level gauge , Hydrogen gas detector, etc .



    Split Type NaClO Solution Sodium Hypochlorite Generator 2 Kg / h Environmental Protection

    Delivery Part : dosing Pump , flow meter , residual chlorine detector, etc





    Split Type NaClO Solution Sodium Hypochlorite Generator 2 Kg / h Environmental Protection





    Compared with other brand



    CNJS Technology

    other brand

    Advantages of CNJS

    Appearance

    Split Type NaClO Solution Sodium Hypochlorite Generator 2 Kg / h Environmental Protection

    Split Type NaClO Solution Sodium Hypochlorite Generator 2 Kg / h Environmental Protection

    Other equipment framework will rust after three months and  three years later, will affect the service life of equipment. CNJY equipment framework use alumina material, and does not rust



    Space

    Host machine size:1200*860*1950

    Host machine :2000*1000*2200              Control cabinet:850*700*1800          rectifier:500*1000*1100                 Host machine , Control cabinet , rectifier can not put in one rom together , need anther device room

    saving space Easy to install and operate

    Raw material

    refined salt or Industrial salt

    refined salt

    A wide scope of utility, economy and low operating cost

    Inlet water requirements

    Depend on actual

    situation need a water

    softener or not

     indispensable a water softener

    Can reduce unnecessary link,  increase equipment safety.

    Brine concentration

    Salt brine mixing device,

    fully dissolved, ensure the

    stability of brine concentration.

    No mixing device, brine concentration is not stable.

    The stable liquid concentration,extend equipment service life.

    Dilute brine ratio

     water injector ratio

     normal valve

    High accuracy, more safety

    Generator fixed way

    All moulds are fixed, equipment installation is more stable

    With simple metal ring, need to reinforce the equipment

    Split Type NaClO Solution Sodium Hypochlorite Generator 2 Kg / h Environmental Protection

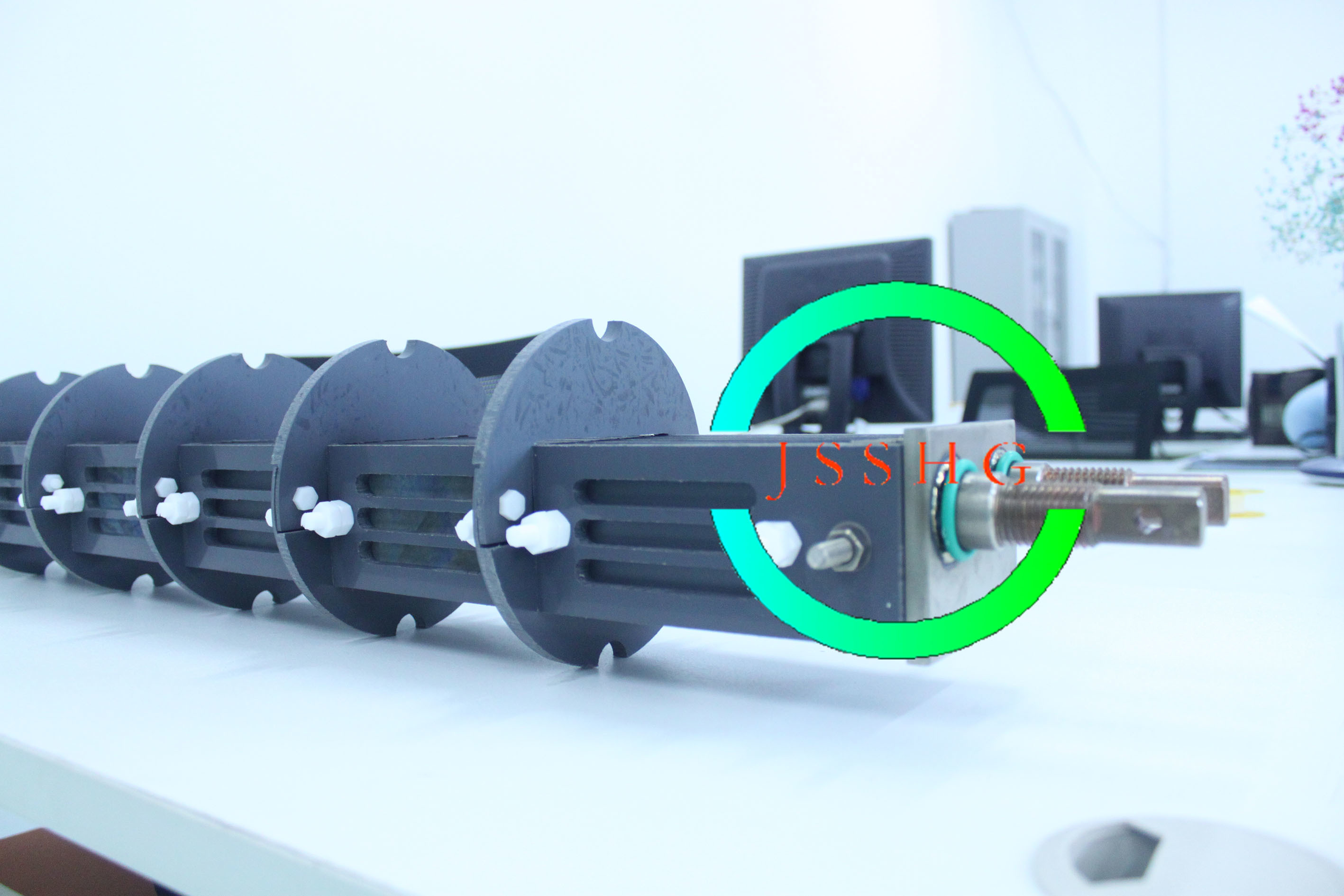

    Structure of electrode slices

    Bipolar type, in series,

    big gap, large flux

    Bipolar type,small gap, small flux

    Big flux , easy to control temperature equipment,electrode service long life

    Thickness of electrodes

    2mm

    1.5mm

    Long life of electrode, resistance to deformation, not short-circuited.

    Electrode coating technology

    nano- coated up to 20 ruthenium iridium oxide particles , coating thickness of 2- microns , 25 times of coating can ensure positive side high produ ing and long life

    Normal ruthenium iridium thickness thin, easy to deformation.

    Coating adhesion, long service life

    Electrode gap

    Big gap and flux

    Small gap and flux

    Low temperature big flux  equipment, high efficiency.

    H2 discharge

    Two gradually exhaust, install the detector

    One way,Rising concentrations in tube and  not safe


    More secure.

    Dosing accuracy

    Multilayer additive form, adding the high precision

    Quantitative dosing, water data is not stable

    Water stable,long service life

    Intelligent control

    Truly intelligent, fully integrated modular structure

    Distributed assembly, intelligent poor

    High performance and stability

    Power system

    Using marine-grade high-frequency voltage constant current power supply, low heat, stable and integrated and equipment

    SCR ballast, large energy consumption, no security, occupy  space, poor stability

    Low power consumption, covers an area of small, low malfunction

    Pickling process

    Small devices not pickling, large equipment protection pickling mobile devices

    Small equipment to pickling, large equipment pickling less protection

    Free of acid pickling, more stable, more safe.

    The man-machine interface

    Small devices with Siemens touch screen, large equipment with industrial man-machine interface

    Small equipment without man- machine interface, large equipment with normal interface

    Convenient and easy to use

    The PLC program

    All size equipment configuration of the PLC, unattended and intelligent control.

    Small equipment without PLC, often appear effluent water  not stable

    Suitable for anyone, no need  professionals.

    Security

    Fully enclosed structure, high stability and high safety of the equipment

    All the equipment and instruments outside naked, fragile and aging

    Easy installation, long service life

    Service life

    More than 8 years

    Less than 5 years



    Warranty time

    15 years

    10 years













































































    Details :





                                                                                                               For CNJS- technology: titanium plate one-piece                                                                                                                  flange with electrodes, and the high sealing                                                                                                                  ability, strong resistance to pressure.




    Split Type NaClO Solution Sodium Hypochlorite Generator 2 Kg / h Environmental Protection                             Split Type NaClO Solution Sodium Hypochlorite Generator 2 Kg / h Environmental Protection

                                                                                                          Other manufacturers: long tubular, flange piece                                                                                                            only a rubber ring between the electrode and                                                                                                                 compressive ability is poor, easy to leakage.







    work shop :



    Split Type NaClO Solution Sodium Hypochlorite Generator 2 Kg / h Environmental Protection
