Large Electrolysis Of Brine Sodium Hypochlorite Generator for Disinfectant

Product Details:

Place of Origin:	CHINA
Brand Name:	CNJS
Certification:	ISO9001
Model Number:	CNJS-L-1000

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	NEGOTIATION
Packaging Details:	wooden case
Delivery Time:	20-45 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	20 SETS PER MONTH

Contact Now

Detailed Product Description

Available Chlorine:	0.8 %	Power Input:	380V, 50Hz
Inlet Water Temperature:	5-27℃	Inlet Water Pressure:	0.2-0.4Mpa
Salt Consumption:	3.5kg/kg Cl2	Water Consumption:	125L/kg Cl2
Electrolytic Liquid:	2.5~3% Weak Brine
Highlight:	Onsite Sodium Hypochlorite Generation , Sodium Hypochlorite Production Plant

Large Electrolysis Of Brine Sodium Hypochlorite Generator for Disinfectant

Product introduction:

Generation principle :CNJS - L series NaClO generator is a new type of NaClO solution for field production equipment , suitable for all kinds of needs NaClO disinfected venues . Its working principle is: the sodium chloride solution under the certain cell voltage function, in a series of electrochemical reaction occurs in the cell , the resulting NaClO solution , including the generation of NaClO through chemical equation can be expressed as follows :

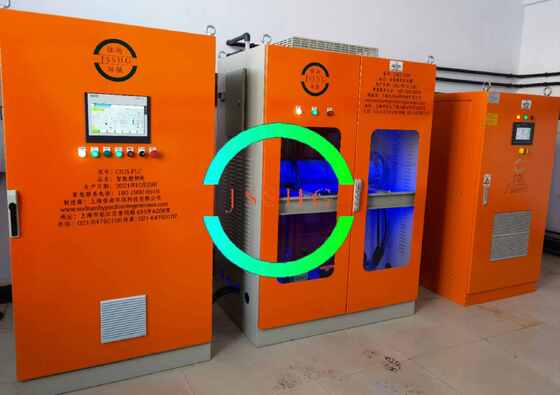

Large Electrolysis Of Brine Sodium Hypochlorite Generator for Disinfectant

The electrode reaction:

anode:2Cl--2e→Cl₂

cathode:2H++2e→H₂

solution:2NaOH+Cl₂→NaCl+NaClO+H₂O

Technical parameters:

Type

Power(V/Hz)

concentration of liquid(mg/l)

available chlorine (Kg/h)

Flow (m3/h)

Salt consumption (kg/d)

Water consumption (m3/d)

Power consumption (kw)

Size(m) (l×w×h)

CNJS-L-1000

380V/50Hz

7-9

0.13

4.5

900*700*

1780

Work flow chart:

Large Electrolysis Of Brine Sodium Hypochlorite Generator for Disinfectant

Product system:

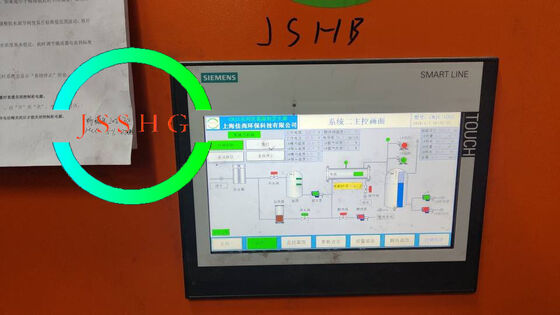

Generator part : Including generator , exchange heat ( options ) , Siemens touch screen and control system , etc.

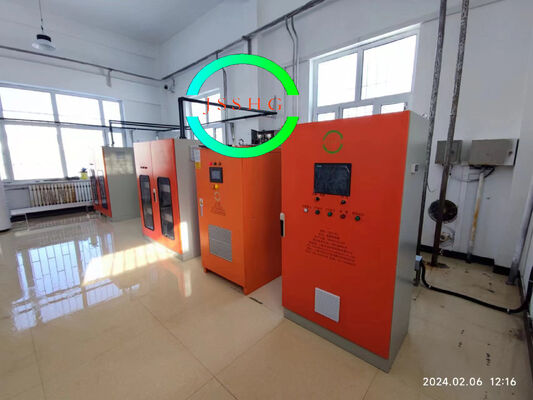

Large Electrolysis Of Brine Sodium Hypochlorite Generator for Disinfectant

Storage Tank Part : Including NaClO tank, blower fan , Level gauge , Hydrogen gas detector, etc .

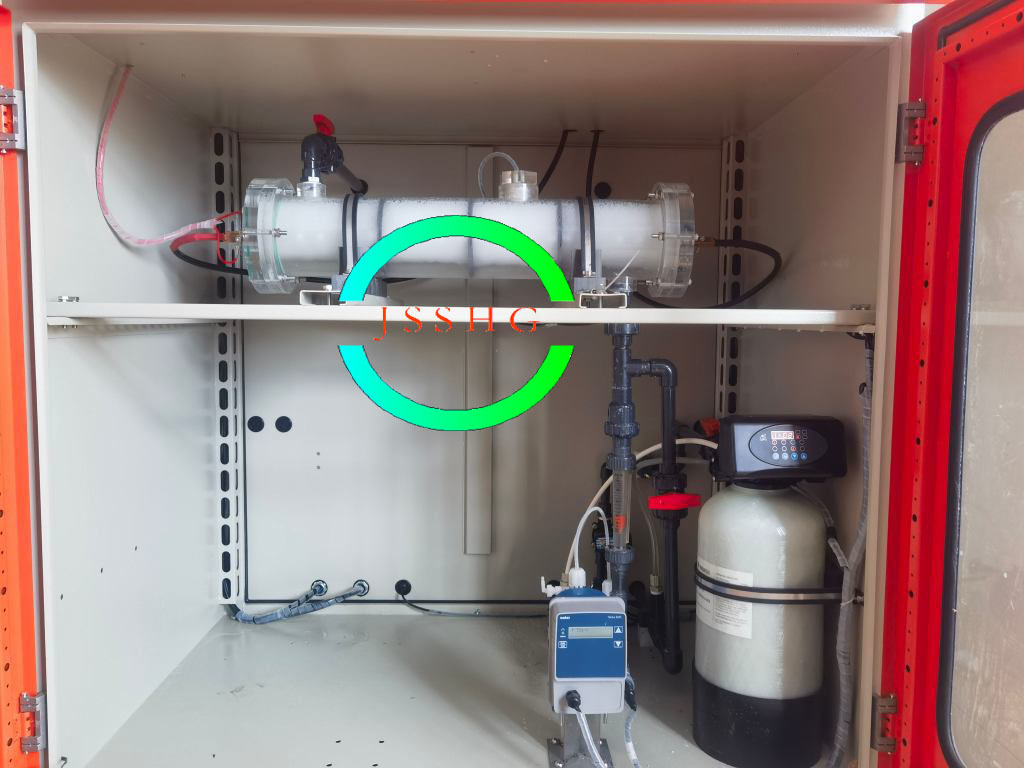

Large Electrolysis Of Brine Sodium Hypochlorite Generator for Disinfectant

Delivery Part : dosing Pump , flow meter , residual chlorine detector, etc

Compared with other brand
	CNJS Technology	other brand	Advantages of CNJS
Appearance			Other equipment framework will rust after three months and three years later, will affect the service life of equipment. CNJY equipment framework use alumina material, and does not rust
Space	Host machine size:12008601950	Host machine :200010002200 Control cabinet:8507001800 rectifier:50010001100 Host machine , Control cabinet , rectifier can not put in one rom together , need anther device room	saving space Easy to install and operate
Raw material	refined salt or Industrial salt	refined salt	A wide scope of utility, economy and low operating cost
Inlet water requirements	Depend on actual situation need a water softener or not	indispensable a water softener	Can reduce unnecessary link, increase equipment safety.
Brine concentration	Salt brine mixing device, fully dissolved, ensure the stability of brine concentration.	No mixing device, brine concentration is not stable.	The stable liquid concentration,extend equipment service life.
Dilute brine ratio	water injector ratio	normal valve	High accuracy, more safety
Generator fixed way	All moulds are fixed, equipment installation is more stable	With simple metal ring, need to reinforce the equipment
Structure of electrode slices	Bipolar type, in series, big gap, large flux	Bipolar type,small gap, small flux	Big flux , easy to control temperature equipment,electrode service long life
Thickness of electrodes	2mm	1.5mm	Long life of electrode, resistance to deformation, not short-circuited.
Electrode coating technology	nano- coated up to 20 ruthenium iridium oxide particles , coating thickness of 2- microns , 25 times of coating can ensure positive side high produ ing and long life	Normal ruthenium iridium thickness thin, easy to deformation.	Coating adhesion, long service life
Electrode gap	Big gap and flux	Small gap and flux	Low temperature big flux equipment, high efficiency.
H₂ discharge	Two gradually exhaust, install the detector	One way,Rising concentrations in tube and not safe	More secure.
Dosing accuracy	Multilayer additive form, adding the high precision	Quantitative dosing, water data is not stable	Water stable,long service life
Intelligent control	Truly intelligent, fully integrated modular structure	Distributed assembly, intelligent poor	High performance and stability
Power system	Using marine-grade high-frequency voltage constant current power supply, low heat, stable and integrated and equipment	SCR ballast, large energy consumption, no security, occupy space, poor stability	Low power consumption, covers an area of small, low malfunction
Pickling process	Small devices not pickling, large equipment protection pickling mobile devices	Small equipment to pickling, large equipment pickling less protection	Free of acid pickling, more stable, more safe.
The man-machine interface	Small devices with Siemens touch screen, large equipment with industrial man-machine interface	Small equipment without man- machine interface, large equipment with normal interface	Convenient and easy to use
The PLC program	All size equipment configuration of the PLC, unattended and intelligent control.	Small equipment without PLC, often appear effluent water not stable	Suitable for anyone, no need professionals.
