| Place of Origin: | CHINA |
| Brand Name: | CNJS |
| Certification: | ISO9001 |
| Model Number: | CNJS-M-1000 |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | NEGOTIATION |
| Packaging Details: | wooden case |
| Delivery Time: | 20-45 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20 SETS PER MONTH |
| Available Chlorine: | 0.8 % | Power Input: | 380V, 50Hz |
|---|---|---|---|
| Inlet Water Temperature: | 5-27℃ | Inlet Water Pressure: | 0.2-0.4Mpa |
| Salt Consumption: | 3.5kg/kg Cl2 | Water Consumption: | 125L/kg Cl2 |
| Electrolytic Liquid: | 2.5~3% Weak Brine | Work Type: | 24 Hours Automatic |
| Market: | Globle | ||
| Highlight: | Onsite Sodium Hypochlorite Generation,Sodium Hypochlorite Solution For Disinfection |
||

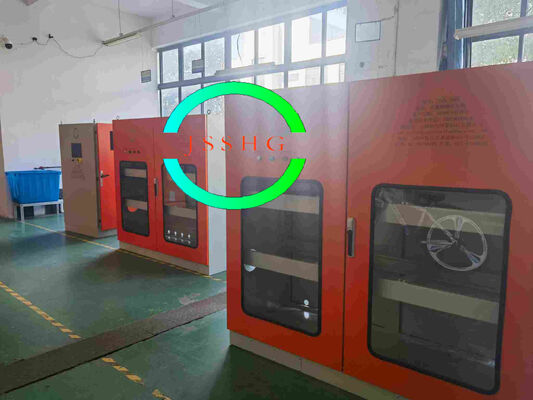

1kg Sodium Hypochlorite Generator Machine for Water Plant Disinfection
Product introduction:
Generation principle :CNJS - M series NaClO generator is a new type of NaClO solution for field production equipment , suitable for all kinds of needs NaClO disinfected venues . Its working principle is: the sodium chloride solution under the certain cell voltage function, in a series of electrochemical reaction occurs in the cell , the resulting NaClO solution , including the generation of NaClO through chemical equation can be expressed as follows :
The electrode reaction:
|
anode:
|
2Cl--2e→Cl2 |
|
cathode:
|
2H++2e→H2 |
|
solution:
|
2NaOH+Cl2→NaCl+NaClO+H2O |
Technical parameters:
Type :CNJS-M1000
Available chlorine ( Kg/ h) : 1
Flow ( m3/h) :0.13
Salt consumption ( kg /h ) :84
Water consumption (m3/d) :3
Power consumption (kw): 4.5
Work flow :
|
Dissolving salt in the tank into 25% concentration of salt water
|
|
Diluting the salt water into 3 % weak salt water
|
|
Pump it into the Electrolytic cell for electrolysis
|
|
Sodium hypochlorite hypochlorite solution come out to the storage tank
|
|
The Blower device dilute the hydrogen to safe concentration and then release
|
Product system:
|

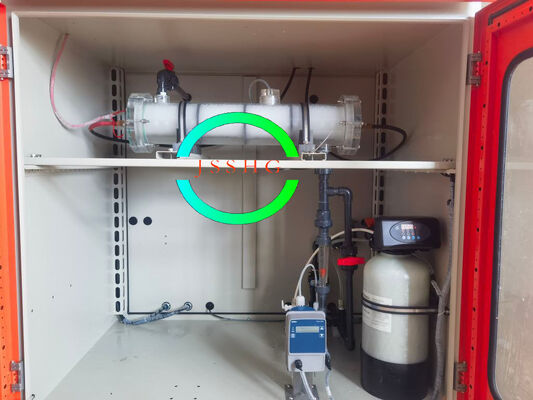

Generator part :
|
Including generator , exchange heat ( options ) , Siemens touch screen and control system , etc. |
|
Storage Tank Part :
|
Including NaClO tank, blower fan , Level gauge , Hydrogen gas detector, etc . |
|
Delivery Part :
|
dosing Pump , flow meter , residual chlorine detector, etc |
Advantages on CNJS Technology :
|
|
CNJS Technology |
Advantages of CNJS |
|
Appearance |
|
Other equipment framework will rust after three months and three years later, will affect the service life of equipment. CNJY equipment framework use alumina material, and does not rust |
|
Space |
Host machine size:1200*860*1950 |
saving space Easy to install and operate |
|
Raw material |
refined salt or Industrial salt |
A wide scope of utility, economy and low operating cost |
|
Inlet water requirements |
Depend on actual situation need a water softener or not |
Can reduce unnecessary link, increase equipment safety. |
|
Brine concentration |
Salt brine mixing device, fully dissolved, ensure the stability of brine concentration. |
The stable liquid concentration,extend equipment service life. |
|
Dilute brine ratio |
water injector ratio |
High accuracy, more safety |
|
Generator fixed way |
All moulds are fixed, equipment installation is more stable |
|
|

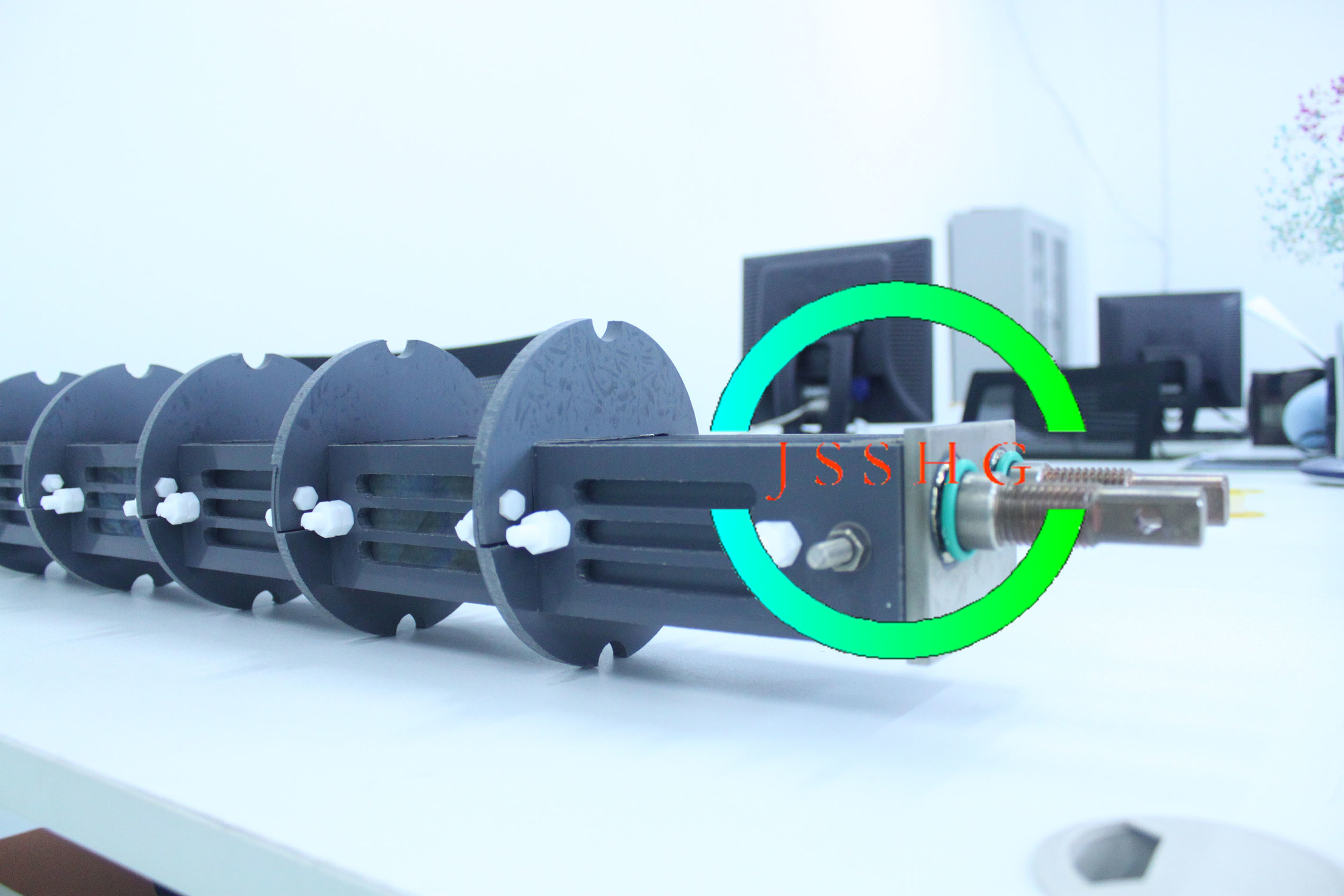

Structure of electrode slices |
Bipolar type, in series, big gap, large flux |
Big flux , easy to control temperature equipment,electrode service long life |
|
Thickness of electrodes |
2mm |
Long life of electrode, resistance to deformation, not short-circuited. |
|
Electrode coating technology |
nano- coated up to 20 ruthenium iridium oxide particles , coating thickness of 2- microns , 25 times of coating can ensure positive side high produ ing and long life |
Coating adhesion, long service life |
|
Electrode gap |
Big gap and flux |
Low temperature big flux equipment, high efficiency. |
|
H2 discharge |
Two gradually exhaust, install the detector |
More secure. |
|
Dosing accuracy |
Multilayer additive form, adding the high precision |
Water stable,long service life |
|
Intelligent control |
Truly intelligent, fully integrated modular structure |
High performance and stability |
|
Power system |
Using marine-grade high-frequency voltage constant current power supply, low heat, stable and integrated and equipment |
Low power consumption, covers an area of small, low malfunction |
|
Pickling process |
Small devices not pickling, large equipment protection pickling mobile devices |
Free of acid pickling, more stable, more safe. |
|
The man-machine interface |
Small devices with Siemens touch screen, large equipment with industrial man-machine interface |
Convenient and easy to use |
|
The PLC program |
All size equipment configuration of the PLC, unattended and intelligent control. |
Suitable for anyone, no need professionals. |
Details :

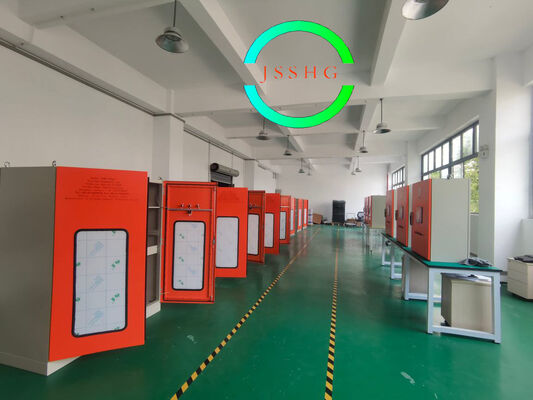

work shop :
