    Product Details:

    Place of Origin: CHINA
    Brand Name: CNJS
    Certification: ISO9001
    Model Number: CNJS-Y-1000

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: NEGOTIATION
    Packaging Details: wooden case
    Delivery Time: 20-45 work days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 20 SETS PER MONTH
    Contact Now
    Detailed Product Description
    Available Chlorine: 0.8 % Inlet Water Temperature: 5-27℃
    Inlet Water Pressure: 0.2-0.4Mpa Salt Consumption: 3.5kg/kg Cl2
    Water Consumption: 125L/kg Cl2 Electrolytic Liquid: 2.5~3% Weak Brine
    Highlight:

    Onsite Sodium Hypochlorite Generation System

    ,

    Production Of Sodium Hypochlorite







    Product introduction:



    Generation principle : CNJS - L series NaClO generator is a new type of NaClO solution for field production equipment , suitable for all kinds of needs NaClO disinfected venues . Its working principle is: the sodium chloride solution under the certain cell voltage function, in a series of electrochemical reaction occurs in the cell , the resulting NaClO solution , chemical equation can be expressed as follows :



                                                            NaCl+H2O+DC→NaClO+H2







    The electrode reaction:2NaOH+Cl2→NaCl+NaClO+H2O




    Technical parameters:



    Type

    Power(V/Hz)

    concentration of liquid(mg/l)

    available chlorine (Kg/h)

    Flow (m3/h)

    Salt consumption (kg/d)

    Water consumption (m3/d)

    Power consumption   (kw)

    Size(m)      (l×w×h)

    CNJS-Y1000

    380V/50Hz

    7-9

    1

    0.13

    84

    3

    4.5

    900*700*1780





    Work flow chart:



    Split Type On Site Sodium Hypochlorite Generation Wastewater Treatment

    Product system:

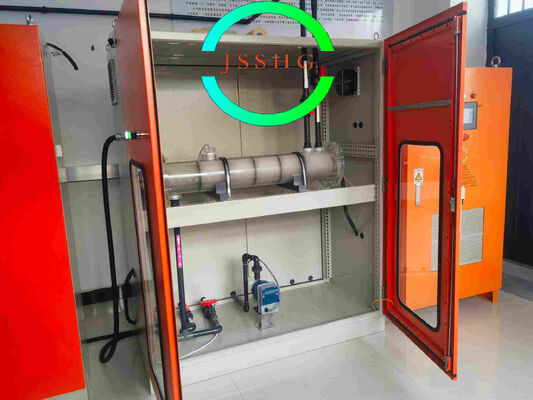

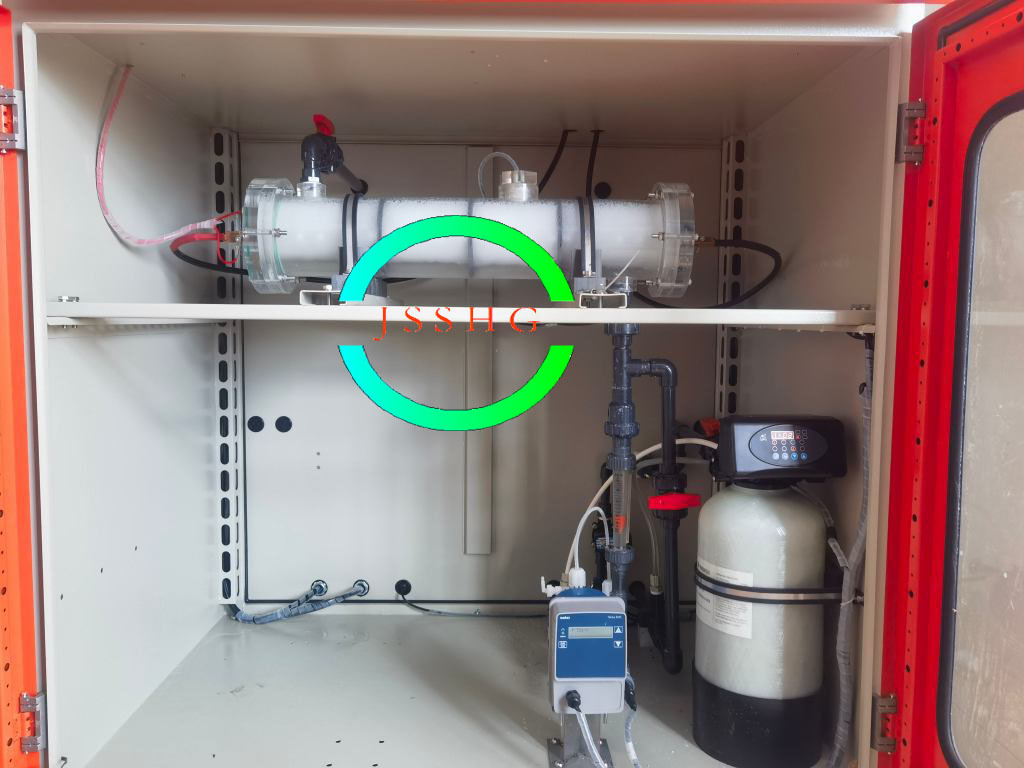

    Generator part : Including generator , exchange heat ( options ) , Siemens touch screen and control system , etc.



                                                                   Split Type On Site Sodium Hypochlorite Generation Wastewater Treatment



    Storage Tank Part : Including NaClO tank, blower fan , Level gauge , Hydrogen gas detector, etc .



    Split Type On Site Sodium Hypochlorite Generation Wastewater Treatment

    Delivery Part : dosing Pump , flow meter , residual chlorine detector, etc





    Split Type On Site Sodium Hypochlorite Generation Wastewater Treatment


















    12,500 tons / day water plant sodium hypochlorite and chlorine dioxide generator Technical indicators comparative analysis


    (Equipment uses system of one use and one reserve)



    No. Content Chlorine dioxide generator Sodium hypochlorite generator
    1 Making process



    Sodium chlorate and hydrochloric acid reaction to produce chlorine dioxide
    5NaClO2 + 4HCl(Concentrated)=4ClO2 ↑ + 5NaCl + 2H2O (Sodium chlorite method)



    Electrolysis of brine to produce sodium hypochlorite solution  NaCL+H2O=NaCLO+H2↑
    2 Raw material



    Hydrochloric acid and sodium pochlorite



    Not iodized salt
    3 Raw materials form



    Hydrochloric acid must be submitted for approval by the public security department





    Salt Company record can be purchased and delivered to your door
    4 Raw material inventory



    Hydrochloric acid and Sodium chlorite must be placed separately, strict managementand make a leak emergency measures.





    Waterproof, moisture stacked ,without safety measures
    5 Raw materials for corrosion





    Hydrochloric acid is a strong volatility and corrosive, affiliated electrical equipment, pumps, equipment room doors and other metal materials







    No corrosive
    6 Raw material safety



    Sodium chlorite is flammable and explosive materials





    Without any security risks
    7 safety supervision



    No national standard security administration of Work Safety performance standards, unable to meet the requirements of safety supervision







    No
    8 License





    Health supervision department approval to wade document



    Health supervision department approval to wade document
    9 Storage



    The gas generated can not be saved



    Room temperature , closed, dark , plastic PE containers saved for a long save time.
    10 Available chlorine concentration



    CLO2+CL2 Mixed gas





    0.8% liquid ( sodium hypochlorite solution with low concentration of volatile)
    11 Finished state



    A strong irritant gas asphyxiation ,
    Highly toxic



    Light yellow transparent liquid, little irritating odor
    12 Finished security





    Must be prepared to deal with the strict anti-leak, emergency measures of leakage, or easily to cause accidents.





    Liquid disinfection, diluted with water rinse when  leakage, no security of risks.
    13 Stability Gas, can not be saved





    Stable low concentration of sodium hypochlorite solution can be stored for a long time.







    14 Mechanism CLO2+CL2 HOCl
    15 Dosing method Ejector siphon dosing of chlorine, the regulation can not be variable, fixed amount of chlorine





    Accurate metering pump pressurized metered dosing, through the pipe network can be at any point the plant area, with the flow, residual value linkage form a closed loop metering pump flow is automatically adjusted to achieve the frequency variable dosing of chlorine.





    16 Dosing accuracy / convenience Siphon dosing of chlorine, accuracy is poor, it can not be precise metering control





    Accuracy and can be administered using a smart device for precise measurement of flow rate based on the pipe network + line chlorine dosing, high degree of automation, enabling automatic intelligent inverter precise control, high degree of convenience.





    17 The contact time with water ≥30min ≥30min
    18 Leak prevention measures Must be strictly set the leakage of chlorine absorption device





    No special protective measures in the event of leakage , just use a lot of water to flush diluted









    19 Leak harmful levels Gaseous state, once leak is easy to cause large-scale diffusion, and serious social harm consequences Liquid state, and the leakage of the liquid can be diluted then into the sewage pipes
    20 Disinfection
     By-products

    Perchlorate chlorite must be strictly controlled, easily exceeded and leading to contamination of the water quality









    Highly secure disinfection products
    21 safety Reaction leak may exist , must be prepared once the leakage of chlorine emergency plan and related measures, otherwise may threaten personal safety. Safer , no risk of leakage
    22 life service  About five years
    The whole life of more than 20 years , the electrode life more than 8 years.
    23 Warranty time 1 year Machine free 2-year warranty ,
    free individual electrode 5-year warranty .

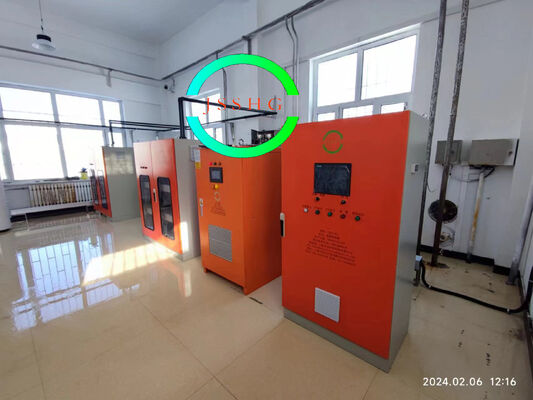

    work shop :



    Split Type On Site Sodium Hypochlorite Generation Wastewater Treatment
