    Product Details:

    Place of Origin: CHINA
    Brand Name: CNJS
    Certification: ISO9001
    Model Number: CNJS-HL2

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Packaging Details: wooden case
    Delivery Time: 7-30 work days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 5 SETS /month
    Contact Now
    Detailed Product Description
    Available Chlorine: 12 % Power Input: 380V, 50Hz
    Inlet Water Temperature: 5-27℃ Inlet Water Pressure: 0.2-0.4Mpa
    Salt Consumption: 4 Kg/kg Cl2 Water Consumption: 125 L/kg Cl2
    Electrolytic Liquid: 2.5~3% Weak Brine
    High Light:

    Production Of Sodium Hypochlorite


    Sodium Hypochlorite Solution For Disinfection


    Safety Sodium Hypochlorite Production Generator System From Brine



    Product introduction:


    CNJS - HL2 high concentration of sodium hypochlorite generator


         CNJS-HL Series modular generation system is safe, convenient, economical, low cost, efficient chlorine gas,, sodium hypochlorite.

          General System Configuration : Available chlorine production is 1000-2000 kg per day, that is 5-10 kg per hour. Extraordinary system configuration : According to user needs , the combination of modules expanding into larger modules , the production capacity designed according to user requirements, up to 5,000 tons a year , 10,000 tons, 100,000 tons or even more .

    Eliminating the risk of leakage due to chlorine and bulk sodium hypochlorite caused , also avoid use of hazardous chemicals as raw materials of chemical disinfection equipment and the potential risks ; and to get rid of the hassle associated with suppliers brought . For most need disinfection and oxidation businesses and regions is an ideal choice .


    Characteristics and advantages :


    •  Instead of liquid chlorine , exclude the leak of poisoning hazards from the liquid chlorine

    •  Production of 10-15 % concentration of chlorine

    •  Production of 5-12% concentration of sodium hypochlorite liquid
    •  Simple operation to quiet
    •  Adapt to the remote monitoring of PLC system
    •  Components are mature and reliable, in line with national standards

    •  After warranty , life-long maintenance , timely and thoughtful service


                                                             CNJY-HL2 Series


    Day( Hour )production

    Operation parameters (cost /Kg. Available chlorine)

    Chlorine ( kg / d )

    120 - 240

    Food grade salt(kg)


    Chlorine ( kg / h )

    5 - 10



    15%( L / h )

    800 - 1600

    Power(AC KWh)


    NaClO 10 - 12 %( T / d )(converted from chlorine)

    1 - 2

    Hydrogen content  ( % Ventilation rate )

    Less than 1 %( Safe )


    Characteristics of the equipment :

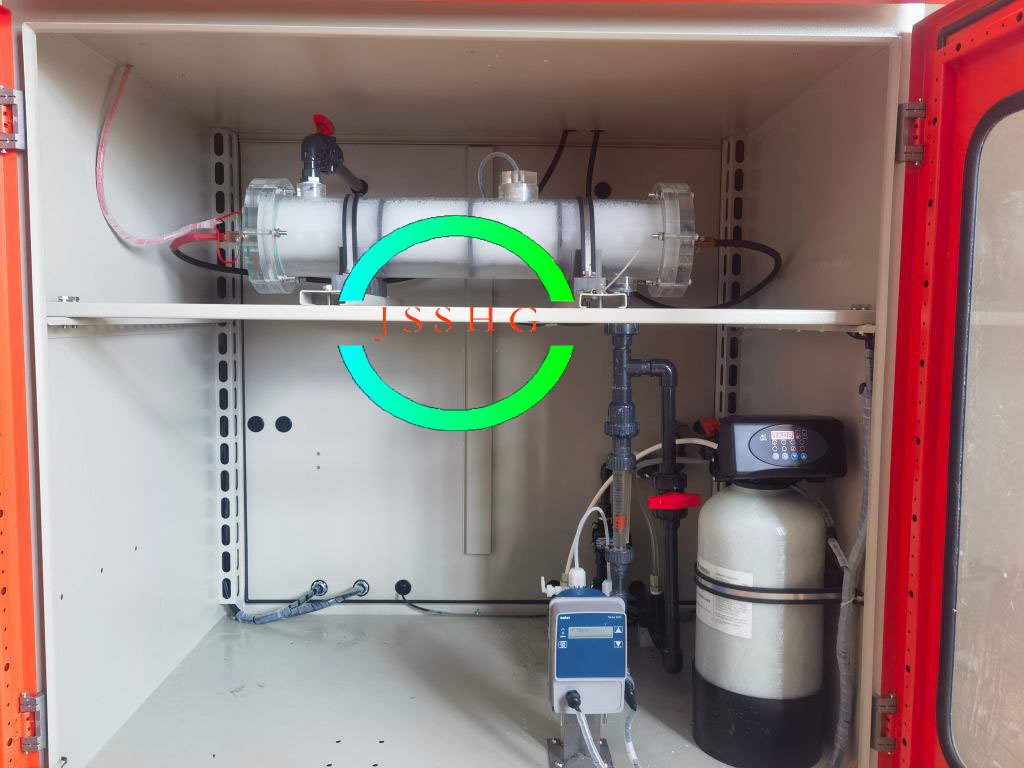

     The assembly structure
    •  Alumina metal bracket
    •  Stainless steel fasteners
    •  Corrosion resistance of the valve and reliable seal
    •  Glue and soldering of the plastic pipe

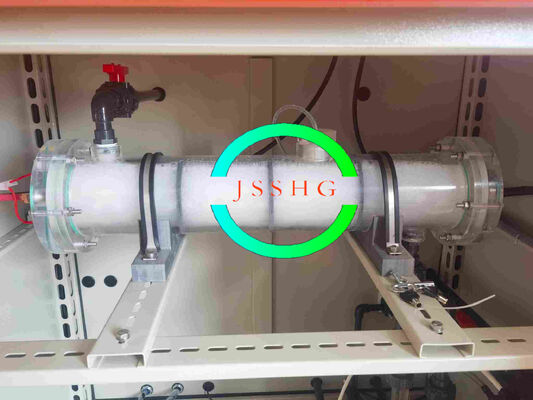

     Electrolytic cell
    •  High-tech and new membrane coated titanium electrode


    Rectifier power supply
    •  Precision of the high frequency DC power supply
    •  Keep constant current steady DC output


    Automatic control

    PLC programming control , remote monitoring


    Water quality regulation

    Production water, salt water purification treatment
