    Product Details:

    Place of Origin: CHINA
    Brand Name: CNJS
    Certification: ISO9001
    Model Number: CNJS-SW50

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: NEGOTIATION
    Packaging Details: wooden case
    Delivery Time: 20-45 wok days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 20 SETS PER MONTH
    Detailed Product Description



    Intelligent Modular Seawater Electrochlorination Systems Sodium Hypochlorite Electrolysis





    Principle:



    CNJS-SW series sodium hypochlorite generator is a newly and work through electrolysis of salt water , the whole system consists of electrolysis electrode assembly , rectification power and automatic control system , dissolving system , filtering system , ratio device and so on . The salt water is electrolyzed into sodium hypochlorite . Sodium hypochlorite is a kind of disinfection which can gets strong antivirus and bleach power

      the sodium chloride solution under the certain voltage effect of the cell, a series of electrochemical reaction within the cell and the resulting solution is the NaClO solution.

          Electrode reaction:

    Intelligent Modular Seawater Electrochlorination Systems Sodium Hypochlorite Electrolysis



    The electrode reaction :Intelligent Modular Seawater Electrochlorination Systems Sodium Hypochlorite Electrolysis


    Technical parameters:



    Type

    Power(V/Hz)

    concentration of liquid(g/l)

    available chlorine (Kg/h)

    Flow (m3/h)

    Power consumption   (kw)

    Size(m)      (l×w×h)

    CNJS-SW50

    380V/50Hz

    2-3

    50

    25

    206

    2300*960*1980





    Product features :

    Inlet water temperature : 5  ℃ ~ + 35 ℃;

    Inlet water pressure :0.2 ~ 0.4 Mpa ;

    Water consumption :According to the local water conditions  ;

    The electrolyte temperature rise:<5 ℃ ;

    Rated power :According to the specific choice model;





     flow chart :

    Intelligent Modular Seawater Electrochlorination Systems Sodium Hypochlorite Electrolysis



    Product system:



    A  , Automatic dissolving salt tank :Including Seawater lift pump, filter device

    B , Sodium hypochlorite generator host machine :Including electrolytic cell , electrolysis power , intelligent control center PLC , the control element, man-machine interface , PC communication module, the operator panel, the host stand, electric valves, electrical power distribution system

    C , Sodium hypochlorite solution storage tank :including hydrogen storage tank , exhaust equipment

    D,  Automatic dosing and on-line monitoring system: including the inverter , corrosion metering dosing pump , online residual chlorine monitor , and the closed-loop control of chlorine

    E , Online instrument series : Production water pressure monitoring , dilute brine online salinity monitoring , temperature controller , flammable gas monitoring sensor , these monitoring instruments are all included alarm signal output



    Advantage of on-site sodium hypochlorite generator



    Intelligent Modular Seawater Electrochlorination Systems Sodium Hypochlorite Electrolysis                                     Intelligent Modular Seawater Electrochlorination Systems Sodium Hypochlorite Electrolysis

    CNJS technology :Using marine – grade high – frequency         Other brand :Large volume, high energy

    voltage constant current power supply , low heat ,                     consumption, poor stability, not integrated.

    Small volume , stability and high security, integrated

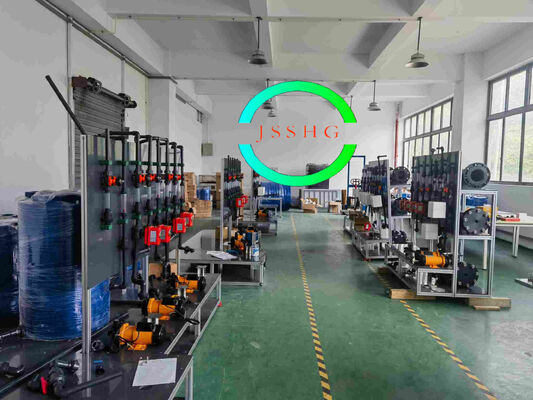

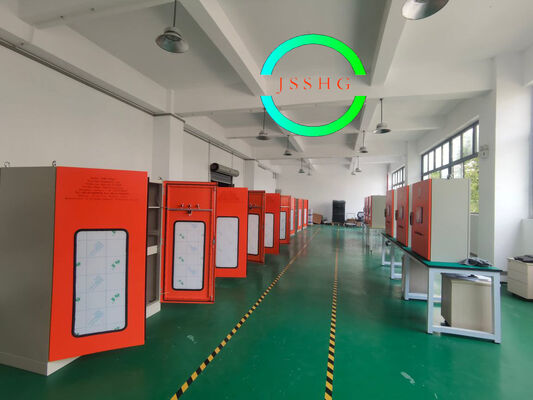

    workshop :

    Intelligent Modular Seawater Electrochlorination Systems Sodium Hypochlorite Electrolysis
