CNJS series NaClO generator is a new type of NaClO solution for field production equipment , suitable for all kinds of needs NaClO disinfected venues. Its working principle is:
the sodium chloride solution under the certain voltage effect of the cell, a series of electrochemical reaction within the cell and the resulting solution is the NaClO solution. The main process can be simplified as follows:
Automatic sodium hypochlorite generator system fully automatic production, contains the system
A,Automatic dissolving salt tank :Including salt tank , liquid level control , dissolving salt pump , electric valves , piping and other components which could automatic transmission salt , dissolving salt , saturated brine
B,Saturated brine filter :Including stainless steel two precision filter ,primary filtering accuracy 50um, secondary filtration precision 5um, use PP filter , the filter can be easily replaced, ensure clean brine ;
C,Dilute brine tank :The saturated brine and production water has been diluted with 2.5 % weak brine water , for the power solutions

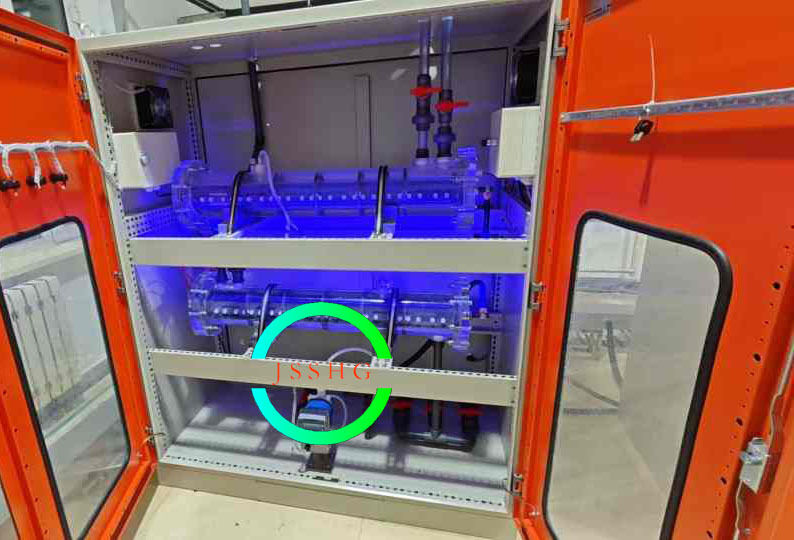

D,Sodium hypochlorite generator host machine :Including electrolytic cell , electrolysis power , intelligent control center PLC , the control element, man-machine interface , PC communication module, the operator panel, the host stand, electric valves, electrical power distribution system
E,Sodium hypochlorite solution storage tank :including hydrogen storage tank , exhaust equipment

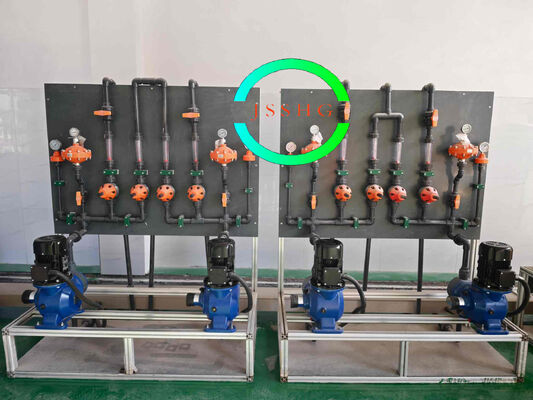

F,Automatic dosing and on-line monitoring system: including the inverter , corrosion metering dosing pump , online residual chlorine monitor , and the closed-loop control of chlorine
G,Online instrument series : Production water pressure monitoring , dilute brine online salinity monitoring , temperature controller , flammable gas monitoring sensor , these monitoring instruments are all included alarm signal output
Advantage on CNJS Products :
For CNJS technology: 1.5 mm base material, titanium of the nanoscale ruthenium iridium oxide coating on the over 25 times coating, coating thickness up to 20 microns adhesion, long service life.
Other manufacturers: electrode thickness is only 1.0 mm, common ruthenium iridium thickness thin, easy to deformation. After scaling easy to short circuit, the above is scaling electrode after burn.
