| Place of Origin: | CHINA |
| Brand Name: | CNJS |
| Certification: | ISO9001 |
| Model Number: | CNJS-S-400 |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | NEGOTIATION |
| Packaging Details: | wooden case |
| Delivery Time: | 7-15 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100 SETS /month |
| Available Chlorine: | 0.8% | Inlet Water Temperature: | 5-27℃ |
|---|---|---|---|
| Inlet Water Pressure: | 0.2-0.4Mpa | Electrolytic Liquid: | 2.5~3% Weak Brine |
| Content Available CL: | 7000~9000ppm | Rated Current: | Determined According To The Selected Product Model |
| Working Way: | 24 Hours Automatic | Market: | Globle |
| Highlight: | Hypochlorite Generator Sea Water,Onsite Sodium Hypochlorite Generation System |
||

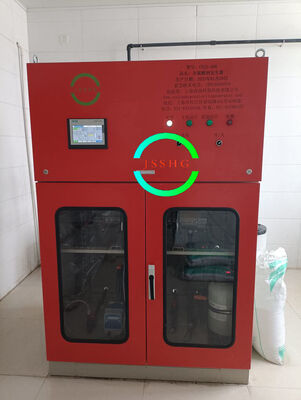

400G/H On Site Made Chlorine With 0.8 % Concentration For Disinfection
Technical parameters :
Type :CNJS-S 400
Available chlorine ( g/ h) : 400
Flow ( L/h) :50
Salt consumption ( kg /h ) :1.4
Rated power (kw) :2.3
Size (mm)( L×W×H) :900*1400*1100
Product feature:
|
Chlorine concentration brine
|
2.5% |
|
Power consumption
|
less than 4.5KW/ kg |
|
Content available CL
|
7000~9000ppm |
|
Working way
|
Unattended , fully automatic operation |
|
Life expectancy of anode coating
|
more than 5 years, and anode coating can be coated and used repeatedly |
|
Life expectancy of the electrode plates
|
more than 20 years |
|
Life expectancy of whole machine
|
more than 15 years |
Principle :
|
the main role of sodium hypochlorite disinfection is through its form hypochlorous acid hydrolysis, hypochlorous acid further break down to form new ecological oxygen [O] , new ecological oxygen strong oxidizing substances such as bacteria and virus on the protein denaturation, which kill pathogenic microbes.
|
|
Second, hypochlorous acid in the process of sterilization, kill the virus, not only can be applied to the cell, the virus shell, and for small hypochlorous acid molecules, without charge, also can penetrate the bacteria (virus) in the body, and bacteria (virus) protein, nucleic acid and enzyme oxidizing reaction of organic polymer, so as to kill the pathogenic microorganisms.
|
|
Again, hypochlorite produced chlorine ion can significantly change the bacteria and virus, the osmotic pressure of the body, make the loss of activity and cell death.
|
Work flow chart :
Product system
|
Filter part :
|
Secondary PP material , 5 um level precision filter, salt can be completely filtering impurities. |
|
Dosing part :
|
Mainly includes dosing pump |
|
Electrode part :
|
Mainly includes the electrode slice and terminal
|
|
Power part :
|
Mainly includes the high frequency power switch and controller. |
The equipment safety reasons :
|
The only needed raw material: Salt can be safe and convenient transportation , storage , without any volatile and other toxic , no focus on chlorine needed hazards monitoring requirements on terror
|
|
Using DC low voltage electrolytic process , there is no high pressure , steam and heat hazards
|
|
If the sodium hypochlorite generator machine got a failure, just stop it and not damage on the surrounding equipment , staff or any surrounding residents.
|
