    Product Details:

    Place of Origin: CHINA
    Brand Name: CNJS
    Certification: ISO9001
    Model Number: CNJS-Y-30000

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: NEGOTIATION
    Packaging Details: wooden case
    Delivery Time: 20-45 work days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 20 sets per month
    Contact Now
    Detailed Product Description
    Highlight:

    Onsite Sodium Hypochlorite Generation System

    ,

    Production Of Sodium Hypochlorite

    NaCIO Sodium Hypochlorite Disinfection Drinking Water 30kg/H of 8000ppm





    Principle:

          The formula of sodium hypochlorite is NaCIO, belong to alkali weak acid salt , it is bright and translucent and can dissolve in liquid water. However, because sodium hypochlorite solution is not easy to store, more low concentration of hypochlorite electrolytic from salt water on site needed







    CNJS-Y series sodium hypochlorite generator is a newly and work through electrolysis of salt water , the whole system consists of electrolysis electrode assembly , rectification power and automatic control system , dissolving system , filtering system , ratio device and so on . The salt water is electrolyzed into sodium hypochlorite . Sodium hypochlorite is a kind of disinfection which can gets strong antivirus and bleach power








     Sodium hypochlorite through electrolysis of brine and a liquid prepared , such a device is called sodium hypochlorite generator. Its sodium hypochlorite generation process through chemical equation can be expressed as follows :

                                  NaCIO Sodium Hypochlorite Disinfection Drinking Water 30kg/H of 8000ppm








    Technical parameters:



    Type

    Power(V/Hz)

    concentration of liquid(mg/l)

    available chlorine (Kg/h)

    Flow (m3/h)

    Salt consumption (kg/d)

    Water consumption (m3/d)

    Power consumption   (kw)

    Size(m)      (l×w×h)

    CNJS-Y30000

    380V/50Hz

    7-9

    30

    3.75

    2520

    60

    95

    1760*960*

    1980





    Work flow chart :





                            NaCIO Sodium Hypochlorite Disinfection Drinking Water 30kg/H of 8000ppm







    Automatic sodium hypochlorite generator system fully automatic production, contains the system



    Automatic dissolving salt tank :Including salt tank , liquid level control , dissolving salt pump , electric valves , piping and other components which could automatic transmission salt , dissolving salt , saturated brine





    Saturated brine filter :Including stainless steel two precision filter ,primary filtering accuracy 50um, secondary filtration precision 5um, use PP filter , the filter can be easily replaced, ensure clean brine





    Dilute brine tank :The saturated brine and production water has been diluted with 2.5 % weak brine water , for the power solutions





    Sodium hypochlorite generator host machine :Including electrolytic cell , electrolysis power , intelligent control center PLC , the control element, man-machine interface , PC communication module, the operator panel, the host stand, electric valves, electrical power distribution system





    Sodium hypochlorite solution storage tank :including hydrogen storage tank , exhaust equipment





    Automatic dosing and on-line monitoring system: including the inverter , corrosion metering dosing pump , online residual chlorine monitor , and the closed-loop control of chlorine





    Online instrument series : Production water pressure monitoring , dilute brine online salinity monitoring , temperature controller , flammable gas monitoring sensor , these monitoring instruments are all included alarm signal output









    Advantage on CNJS Products :



     ◆ The only material needed are salt and water . Salt can be safe and convenient transportation, storage, without any volatile and other toxic, no focus on chlorine needed hazards monitoring requirements on terror



    ◆ DC low voltage electrolysis, no high pressure, steam, heat and other hazards



    ◆ Sodium hypochlorite generator machine got a failure, just shut down and will not cause any harm to the equipment, personnel or nearby residents around.

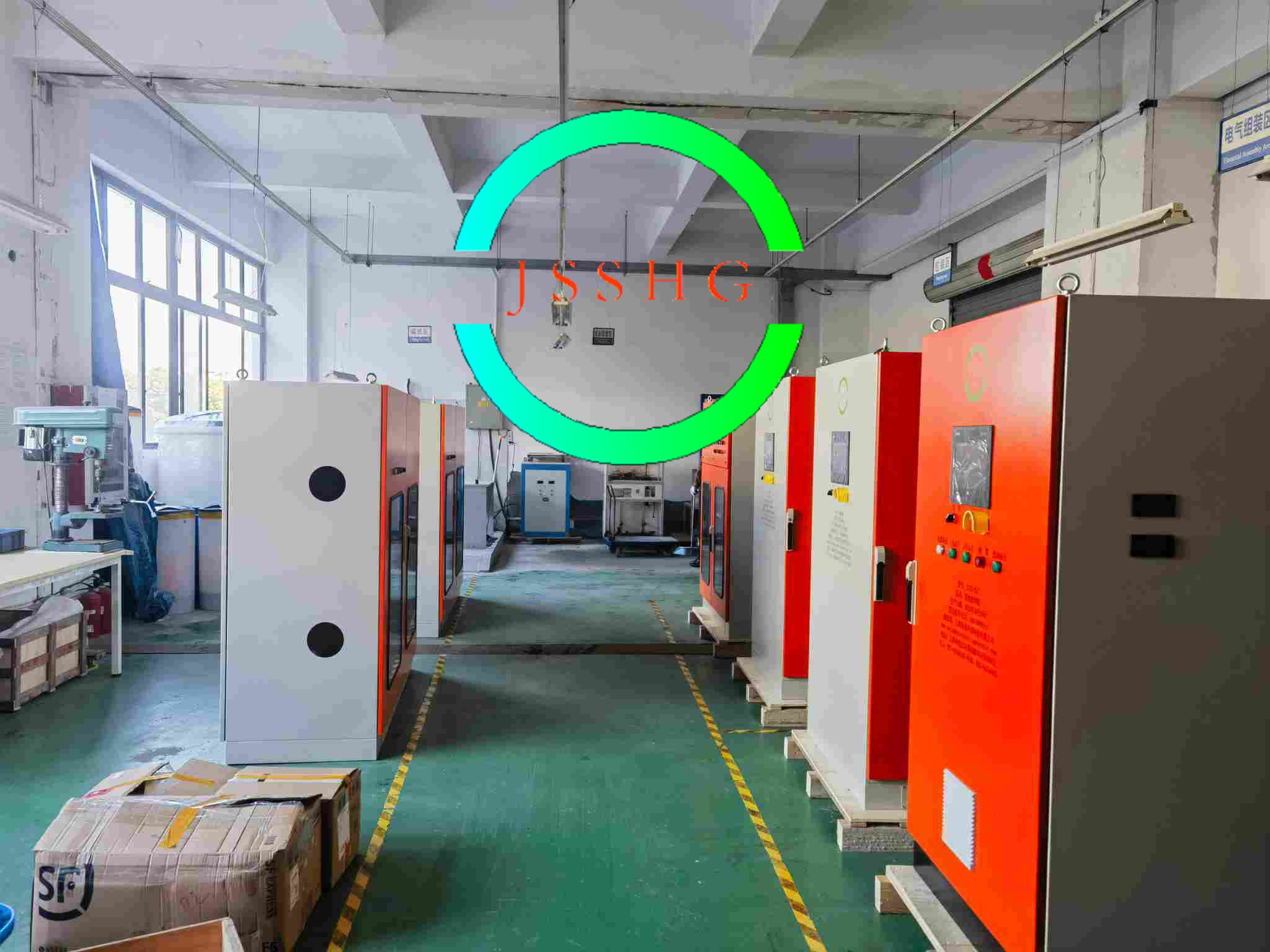

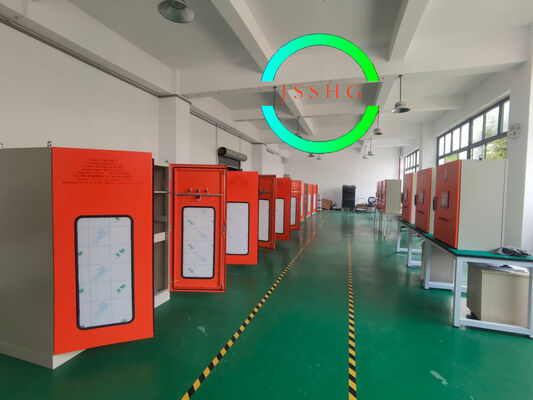

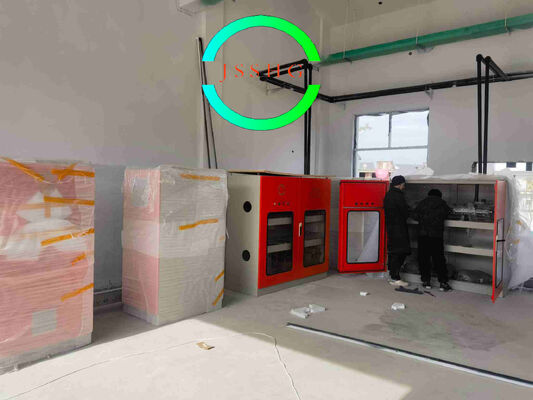

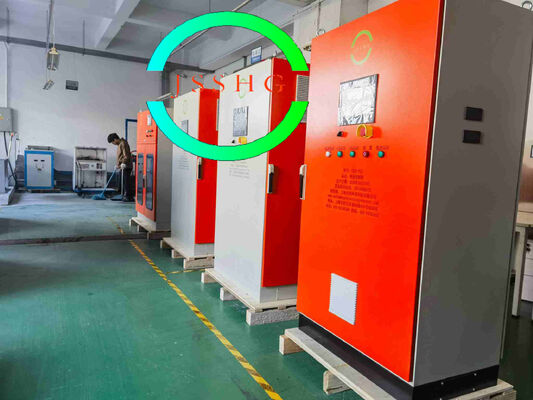

    Workshop :

    NaCIO Sodium Hypochlorite Disinfection Drinking Water 30kg/H of 8000ppm
