| Place of Origin: | CHINA |
| Brand Name: | CNJS |
| Certification: | ISO9001 |
| Model Number: | CNJS-L-3000 |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | NEGOTIATION |
| Packaging Details: | wooden case |
| Delivery Time: | 20-45 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20 SETS PER MONTH |
| Power Input: | 380V, 50Hz | Inlet Water Temperature: | 5-27℃ |
|---|---|---|---|
| Inlet Water Pressure: | 0.2-0.4Mpa | Salt Consumption: | 3.5kg/kg Cl2 |
| Water Consumption: | 125L/kg Cl2 | Electrolytic Liquid: | 2.5~3% Weak Brine |
| Highlight: | Electrolysis Of Brine Solution,Electrolysis Of Brine Products |
||
3000 g / h 0.8% High Purity Brine Electrolysis Sodium Hypochlorite Generation System
Product introduction:
Generation principle :CNJS - L series NaClO generator is a new type of NaClO solution for field production equipment , suitable for all kinds of needs NaClO disinfected venues . Its working principle is: the sodium chloride solution under the certain cell voltage function, in a series of electrochemical reaction occurs in the cell , the resulting NaClO solution , including the generation of NaClO through chemical equation can be expressed as follows :
NaCl+H2O+DC→NaClO+H2 ↑
The electrode reaction:
anode:2Cl--2e→Cl2
cathode:2H++2e→H2
solution:2NaOH+Cl2→NaCl+NaClO+H2O
Technical parameters:
|
Type |
Power(V/Hz) |
concentration of liquid(mg/l) |
available chlorine (Kg/h) |
Flow (m3/h) |
Salt consumption (kg/d) |
Water consumption (m3/d) |
Power consumption (kw) |
Size(m) (l×w×h) |
|
CNJS-L1000 |
380V/50Hz |
7-9 |
1 |
0.13 |
84 |
3 |
4.5 |
900*700*1780 |
Work flow chart:
Product system:

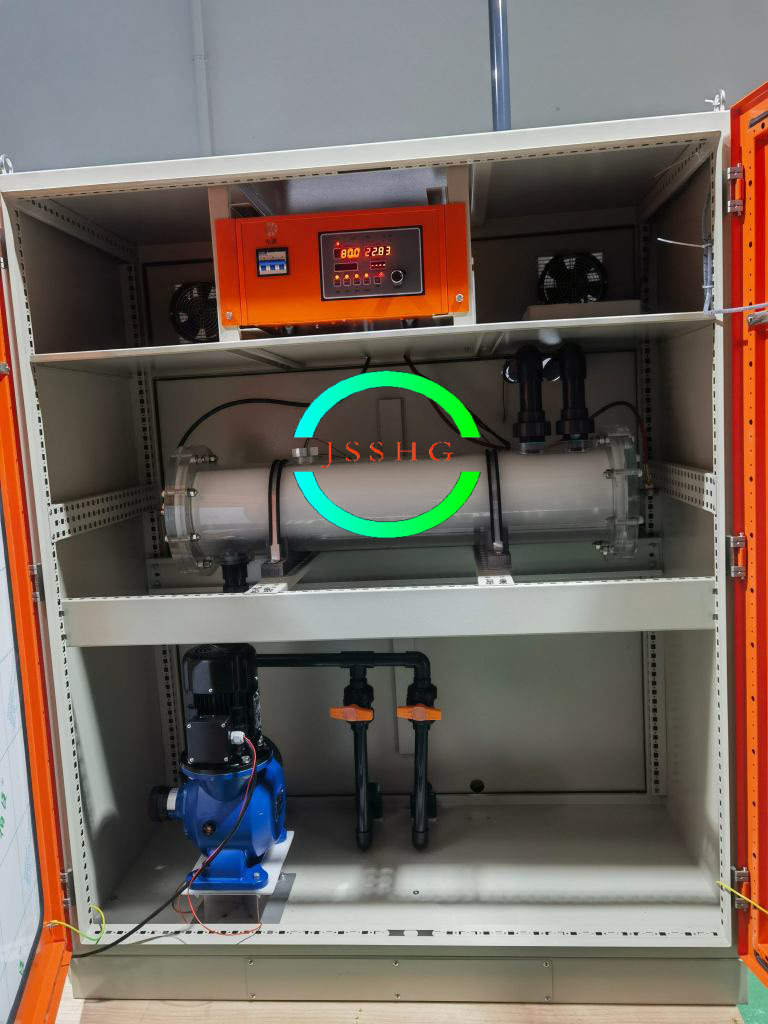

Generator part : Including generator , exchange heat ( options ) , Siemens touch screen and control system , etc.
Storage Tank Part : Including NaClO tank, blower fan , Level gauge , Hydrogen gas detector, etc .
Delivery Part : dosing Pump , flow meter , residual chlorine detector, etc
|
Compared with other brand |
|||
|
|
CNJS Technology |
other brand |
Advantages of CNJS |
|
Appearance |
|
|
Other equipment framework will rust after three months and three years later, will affect the service life of equipment. CNJY equipment framework use alumina material, and does not rust |
|
Inlet water requirements |
Depend on actual situation need a water softener or not |
indispensable a water softener |
Can reduce unnecessary link, increase equipment safety. |
|
Brine concentration |
Salt brine mixing device, fully dissolved, ensure the stability of brine concentration. |
No mixing device, brine concentration is not stable. |
The stable liquid concentration,extend equipment service life. |
|
Dilute brine ratio |
water injector ratio |
normal valve |
High accuracy, more safety |
|
Generator fixed way |
All moulds are fixed, equipment installation is more stable |
With simple metal ring, need to reinforce the equipment |
|
|
Structure of electrode slices |
Bipolar type, in series, big gap, large flux |
Bipolar type,small gap, small flux |
Big flux , easy to control temperature equipment,electrode service long life |
|
Thickness of electrodes |
2mm |
1.5mm |
Long life of electrode, resistance to deformation, not short-circuited. |
|
Electrode coating technology |
nano- coated up to 20 ruthenium iridium oxide particles , coating thickness of 2- microns , 25 times of coating can ensure positive side high produ ing and long life |
Normal ruthenium iridium thickness thin, easy to deformation. |
Coating adhesion, long service life |
|
Electrode gap |
Big gap and flux |
Small gap and flux |
Low temperature big flux equipment, high efficiency. |
|
H2 discharge |
Two gradually exhaust, install the detector |
One way,Rising concentrations in tube and not safe |
More secure. |
|
Dosing accuracy |
Multilayer additive form, adding the high precision |
Quantitative dosing, water data is not stable |
Water stable,long service life |
|
Intelligent control |
Truly intelligent, fully integrated modular structure |
Distributed assembly, intelligent poor |
High performance and stability |
|
Power system |
Using marine-grade high-frequency voltage constant current power supply, low heat, stable and integrated and equipment |
SCR ballast, large energy consumption, no security, occupy space, poor stability |
Low power consumption, covers an area of small, low malfunction |
|
Pickling process |
Small devices not pickling, large equipment protection pickling mobile devices |
Small equipment to pickling, large equipment pickling less protection |
Free of acid pickling, more stable, more safe. |
|
The man-machine interface |
Small devices with Siemens touch screen, large equipment with industrial man-machine interface |
Small equipment without man- machine interface, large equipment with normal interface |
Convenient and easy to use |
|
The PLC program |
All size equipment configuration of the PLC, unattended and intelligent control. |
Small equipment without PLC, often appear effluent water not stable |
Suitable for anyone, no need professionals. |
|
Security |
Fully enclosed structure, high stability and high safety of the equipment |
All the equipment and instruments outside naked, fragile and aging |
Easy installation, long service life |
|
Service life |
More than 8 years |
Less than 5 years |
|
|
Warranty time |
15 years |
10 years |
|
Details :

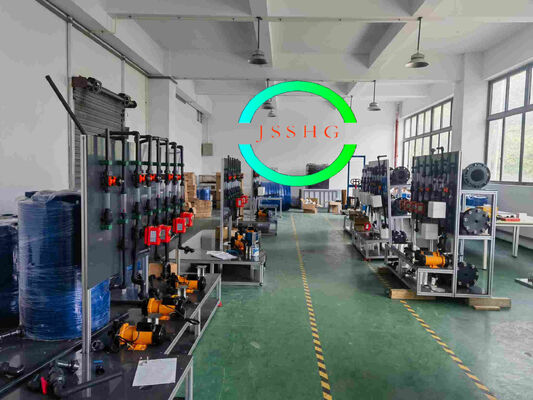

work shop :
