2 kg / h Multi Function Split Type Sodium Hypochlorite Generator Bipolar Electrode



2 kg / h Multi Function Split Type Sodium Hypochlorite Generator Bipolar Electrode





Principle:



    CNJS - L series NaClO generator is a new type of NaClO solution for field production equipment , suitable for all kinds of needs NaClO disinfected venues. Its working principle is:

    the main role of sodium hypochlorite disinfection is through its form hypochlorous acid hydrolysis, hypochlorous acid further break down to form new ecological oxygen [O] , new ecological oxygen strong oxidizing substances such as bacteria and virus on the protein denaturation, which kill pathogenic microbes .

     Second, hypochlorous acid in the process of sterilizatio n, kill the virus, not only can be applied to the cell, the virus shell, and for small hypochlorous acid molecules , without charge, also can penetrate the bacteria (virus) in the body, and bacteria (virus) protein , nucleic acid and enzyme oxidizing reaction of organic polymer, so as to kill the pathogenic microorganisms .

    Again , hypochlorite produced chlorine ion can significantly change the bacteria and virus, the osmotic pressure of the body, make the loss of activity and cell death

Electrode reaction:

anode:2Cl--2e→Cl2

cathode:2H++2e→H2

Solution:2NaOH+Cl2→NaCl+NaClO+H2O



Technical parameters:



Type	Power(V/Hz)	concentration of liquid(mg/l)	available chlorine (Kg/h)	Flow (m3/h)	Salt consumption (kg/d)	Water consumption (m3/d)	Power consumption   (kw)	Size(m)      (l×w×h)
CNJS-L-2000	380V/50Hz	7-9	2	0.25	168	6	8	900*700*1780



The generator main technical indicators :

Environment temperature: -10 ℃ ～+50℃；

The electrolyte flow:200L/hr(Single host)；

The electrolyte temperature rise:<5 ℃ ；

Producing chlorine :  2000g/hr(Single host )；





Work flow chart :

Product system:



Brine preparation part: Including water softener, dissolving tank, salt feeder, mixing system etc .

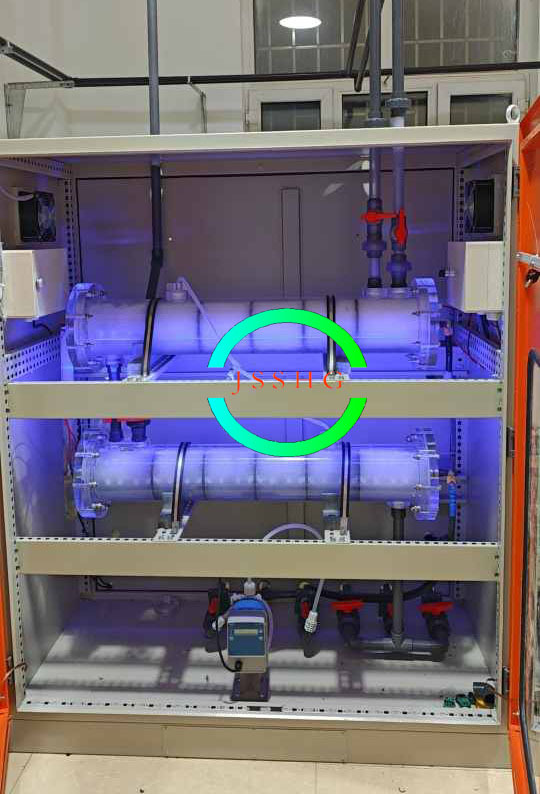

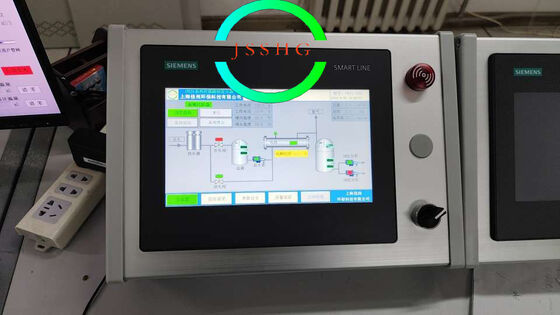

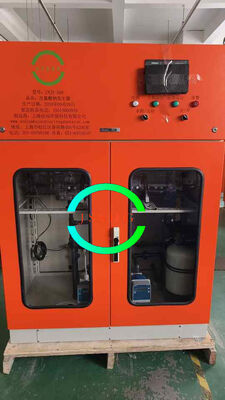

Generation Part: Including Generator,Heated Exchange (options),Siemens touch screen ,Control Cabinet , etc.

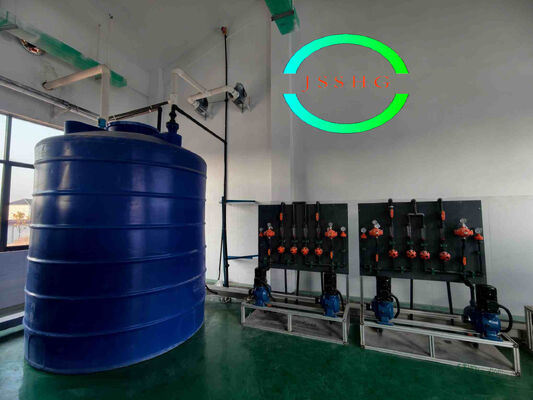

Storage Tank Part : Including NaClO tank , blower fan , Level gauge , Hydrogen gas detector , etc



                      Hydrogen gas monitoring device real-time monitoring the                                                                                              concentration of hydrogen in the sodium hypochlorite                                                                                                  generator room, when the concentration is more than 1%,                                                                                          generator system will automatically send alarm signal                                                                                                    and stop the machine





Delivery Part: dosing Pump, flow meter, residual chlorine detector, etc



Advantage of on-site sodium hypochlorite generator

SAFETY:

Material safety: Salt, Water and Electricity as raw materials, no need for transportation of dangerous chemicals;

Process safety: No risk of chlorine leakage and reactor explosion, safety for operator;

Product safety: Product-0.8% NaCIO solution, has the advantage of stable and safety, cost effective in operation and no attenuation in storage.

ENERGY-SAVING:

Make use of electricity in the off-peak period to generate the NaCIO solution.

ENVIRONMENTAL PROTECTION:

Avoid of usage, transportation of dangerous chemical material.

High current efficiency ,few by-product, safe H₂ ventilation.



Details :



CNJS technology :Using marine – grade high – frequency         Other brand :Large volume,  high energy

voltage constant current power supply , low heat ,                    consumption, poor stability, not integrated.

Small volume , stability and high security, integrated



workshop :
