| Place of Origin: | CHINA |
| Brand Name: | CNJS |
| Certification: | ISO9001 |
| Model Number: | CNJS-Y-20000 |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | NEGOTIATION |
| Packaging Details: | wooden case |
| Delivery Time: | 20-45 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20 sets per month |
| Highlight: | Hypochlorite Generator Sea Water,Onsite Sodium Hypochlorite Generation System |
||
|---|---|---|---|
Large Manual Or Automatic Integration Practical Sodium Hypochlorite Generator
Principle:
CNJS-Y series sodium hypochlorite generator is a newly and work through electrolysis of salt water , the whole system consists of electrolysis electrode assembly , rectification power and automatic control system , dissolving system , filtering system , ratio device and so on . The salt water is electrolyzed into sodium hypochlorite . Sodium hypochlorite is a kind of disinfection which can gets strong antivirus and bleach power :
Technical parameters:
|
Work flow chart :
Automatic sodium hypochlorite generator system fully automatic production, contains the system
A,Automatic dissolving salt tank :Including salt tank , liquid level control , dissolving salt pump , electric valves , piping and other components which could automatic transmission salt , dissolving salt , saturated brine
B,Saturated brine filter :Including stainless steel two precision filter ,primary filtering accuracy 50um, secondary filtration precision 5um, use PP filter , the filter can be easily replaced, ensure clean brine ;
C,Dilute brine tank :The saturated brine and production water has been diluted with 2.5 % weak brine water , for the power solutions
D,Sodium hypochlorite generator host machine :Including electrolytic cell , electrolysis power , intelligent control center PLC , the control element, man-machine interface , PC communication module, the operator panel, the host stand, electric valves, electrical power distribution system
E,Sodium hypochlorite solution storage tank :including hydrogen storage tank , exhaust equipment
F,Automatic dosing and on-line monitoring system: including the inverter , corrosion metering dosing pump , online residual chlorine monitor , and the closed-loop control of chlorine
G,Online instrument series : Production water pressure monitoring , dilute brine online salinity monitoring , temperature controller , flammable gas monitoring sensor , these monitoring instruments are all included alarm signal output
Advantage on CNJS Products :
◆ The only material needed are salt and water . Salt can be safe and convenient transportation, storage, without any volatile and other toxic, no focus on chlorine needed hazards monitoring requirements on terror
◆ DC low voltage electrolysis, no high pressure, steam, heat and other hazards
◆ Sodium hypochlorite generator machine got a failure, just shut down and will not cause any harm to the equipment, personnel or nearby residents around.
details:

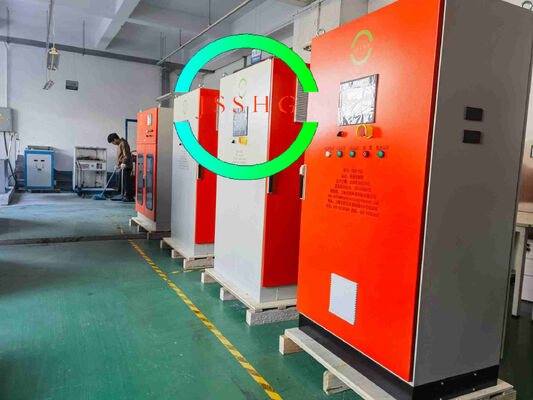

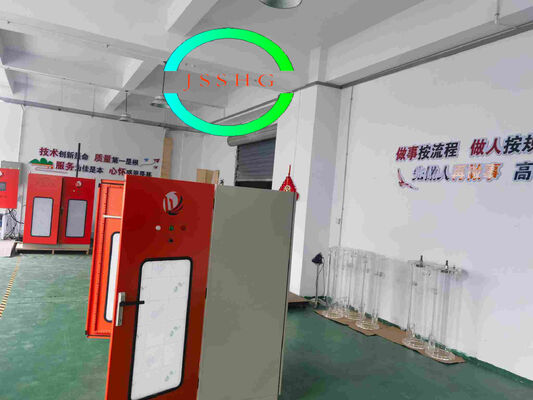

Workshop :
