Place of Origin: | CHINA |
Brand Name: | CNJS |
Certification: | ISO9001 |
Model Number: | CNJS-SW4 |
Minimum Order Quantity: | 1 SET |
---|---|
Price: | NEGOTIATION |
Packaging Details: | wooden case |
Delivery Time: | 20-45 work days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 20 SETS PER MONTH |
Inlet Water Temperature :: | 5 ℃ ~ + 35 ℃; | Water Consumption :: | According To The Local Water Conditions ; |
---|---|---|---|
The Electrolyte Temperature Rise:: | <5 ℃ ; | Rated Power :: | According To The Specific Choice Model; |
Acid Cleaning Period: | Three Months | Design Temperature: | 8-27℃ |
High Light: | Seawater Electro Chlorination,Hypochlorite Generator Sea Water |
4kg Chlorine Capacity Full Automatic Electrolysis From Seawater
Technical parameters:
Type |
Power(V/Hz) |
concentration of liquid(g/l) |
available chlorine (Kg/h) |
Flow (m3/h) |
Power consumption (kw) |
Size(m) (l×w×h) |
CNJS-SW4 |
380V/50Hz |
2-3 |
4 |
2 |
20 |
900*600*1500 |
Product system:
A |
Automatic dissolving salt tank :Including Seawater lift pump, filter device
|
B |

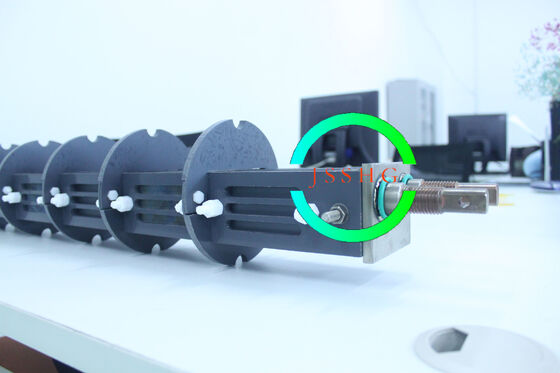

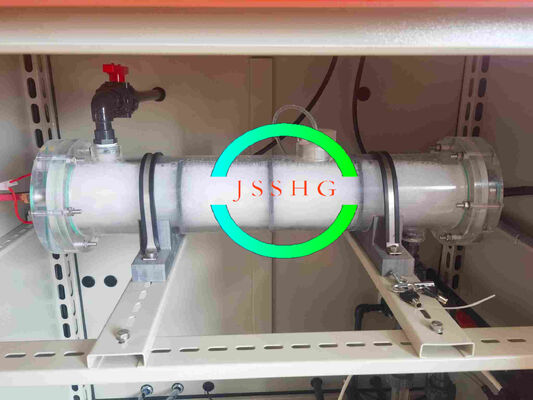

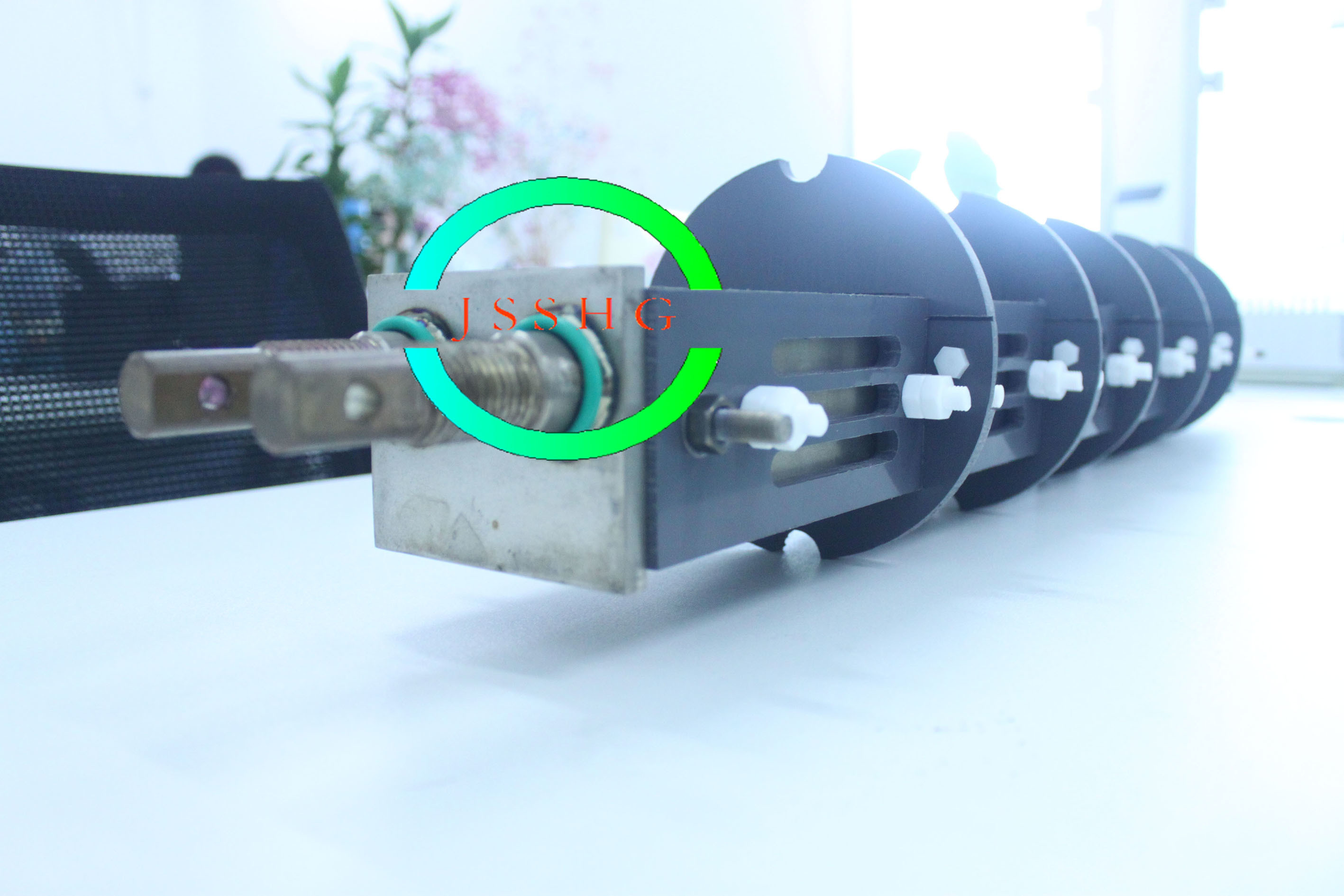

Sodium hypochlorite generator host machine :Including electrolytic cell , electrolysis power , intelligent control center PLC , the control element, man-machine interface , PC communication module, the operator panel, the host stand, electric valves, electrical power distribution system
|
C |
Sodium hypochlorite solution storage tank :including hydrogen storage tank , exhaust equipment
|
D |
Automatic dosing and on-line monitoring system: including the inverter , corrosion metering dosing pump , online residual chlorine monitor , and the closed-loop control of chlorine
|
E |
Online instrument series : Production water pressure monitoring , dilute brine online salinity monitoring , temperature controller , flammable gas monitoring sensor , these monitoring instruments are all included alarm signal output
|
Advantage of on-site sodium hypochlorite generator
CNJS technology :Using marine – grade high – frequency Other brand :Large volume, high energy
voltage constant current power supply , low heat , consumption, poor stability, not integrated.
stability and high security, integrated
