Large Series Sodium Hypochlorite Wastewater Treatment with Nano Scale Coating

Large Series Sodium Hypochlorite Wastewater Treatment with Nano Scale Coating

    • Large Series Sodium Hypochlorite Wastewater Treatment with Nano Scale Coating
    • Large Series Sodium Hypochlorite Wastewater Treatment with Nano Scale Coating
    • Large Series Sodium Hypochlorite Wastewater Treatment with Nano Scale Coating
  • Large Series Sodium Hypochlorite Wastewater Treatment with Nano Scale Coating

    Product Details:

    Place of Origin: CHINA
    Brand Name: CNJS
    Certification: ISO9001
    Model Number: CNJS-S 10000

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: NEGOTIATION
    Packaging Details: wooden case
    Delivery Time: 20-45 work days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 20 sets per month
    Contact Now
    Detailed Product Description
    Highlight:

    Sodium Hypochlorite Uses In Wastewater Treatment

    ,

    On Site Sodium Hypochlorite Generation Systems



    Large Series Sodium Hypochlorite Wastewater Treatment with Nano Scale Coating





    Principle:



        CNJS - S series NaClO generator is a new type of NaClO solution for field production equipment , suitable for all kinds of needs NaClO disinfected venues. Its working principle is:

      the sodium chloride solution under the certain voltage effect of the cell, a series of electrochemical reaction within the cell and the resulting solution is the NaClO solution. The main process can be simplified as follows:

                                                                                Electrode reaction:

    Large Series Sodium Hypochlorite Wastewater Treatment with Nano Scale Coating

    Solution:2NaOH+Cl2→NaCl+NaClO+H2O


    Technical parameters:

    Type

    Power(V/Hz)

    concentration of liquid(mg/l)

    available chlorine (Kg/h)

    Flow (m3/h)

    Salt consumption (kg/d)

    Water consumption (m3/d)

    Power consumption   (kw)

    Size(m)      (l×w×h)

    CNJS-S10000

    380V/50Hz

    7-9

    10

    1.25

    840

    30

    32

    1200*860*

    1950







    Work flow chart :

    Large Series Sodium Hypochlorite Wastewater Treatment with Nano Scale Coating



    Automatic sodium hypochlorite generator system fully automatic production, contains the system



    A, Automatic dissolving salt tank :Including salt tank , liquid level control , dissolving salt pump , electric valves , piping and other components which could automatic transmission salt , dissolving salt , saturated brine

    B, Saturated brine filter :Including stainless steel two precision filter ,primary filtering accuracy 50um, secondary filtration precision 5um, use PP filter , the filter can be easily replaced, ensure clean brine ;

    C, Dilute brine tank :The saturated brine and production water has been diluted with 2.5 % weak brine water , for the power solutions

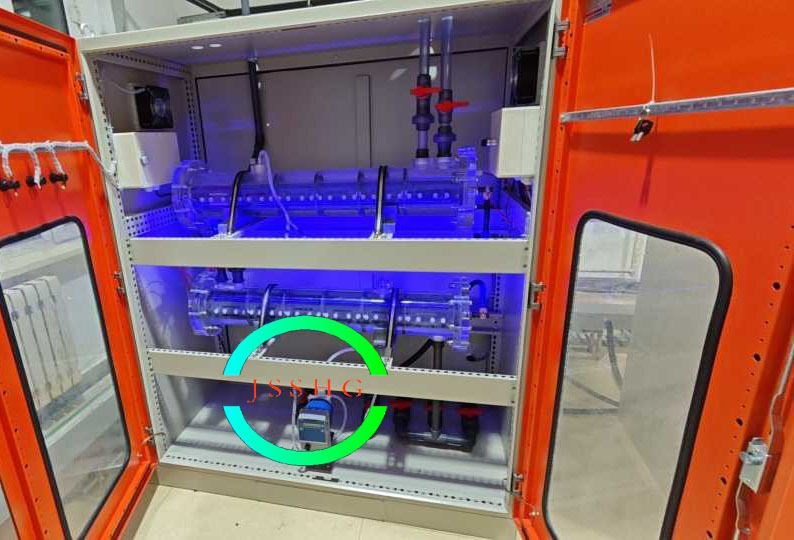

    D, Sodium hypochlorite generator host machine :Including electrolytic cell , electrolysis power , intelligent control center PLC , the control element, man-machine interface , PC communication module, the operator panel, the host stand, electric valves, electrical power distribution system

    E, Sodium hypochlorite solution storage tank :including hydrogen storage tank , exhaust equipment

    F, Automatic dosing and on-line monitoring system: including the inverter , corrosion metering dosing pump , online residual chlorine monitor , and the closed-loop control of chlorine

    G, Online instrument series : Production water pressure monitoring , dilute brine online salinity monitoring , temperature controller , flammable gas monitoring sensor , these monitoring instruments are all included alarm signal output



    Advantage of on-site sodium hypochlorite generator

    Large Series Sodium Hypochlorite Wastewater Treatment with Nano Scale Coating                           Large Series Sodium Hypochlorite Wastewater Treatment with Nano Scale Coating



      CNJS Technology  Material:                                                                                Other :  Electrode thickness is only 1.0 mm,
      Full titanium 2mm base, iridium,                                                                           common ruthenium iridium thickness thin, easy to                    ruthenium oxide nano-coating,                                                                     scaling easy to short circuit, the above is scaling electrode after burn.     the sub-25 coating  thickness of 20 microns
     coating adhesion, long service life.


    Details :



                                                   Large Series Sodium Hypochlorite Wastewater Treatment with Nano Scale Coating

    Large Series Sodium Hypochlorite Wastewater Treatment with Nano Scale Coating
