    Product Details:

    Place of Origin: CHINA
    Brand Name: CNJS
    Certification: ISO9001
    Model Number: CNJS-T-30000

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: NEGOTIATION
    Packaging Details: wooden case
    Delivery Time: 20-45 work days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 20 sets per month
    Contact Now
    Detailed Product Description
    Highlight:

    Sodium Hypochlorite For Water Treatment

    ,

    Sodium Hypochlorite In Drinking Water



    Automated Bleaching Sodium Hypochlorite Drinking Water / Sodium Hypochlorite Plant





    Principle:



    CNJS-T series sodium hypochlorite generator is a newly and work through electrolysis of salt water , the whole system consists of electrolysis electrode assembly , rectification power and automatic control system , dissolving system , filtering system , ratio device and so on . The salt water is electrolyzed into sodium hypochlorite . Sodium hypochlorite is a kind of disinfection which can gets strong antivirus and bleach power :

                                  Automated Bleaching Sodium Hypochlorite Drinking Water / Sodium Hypochlorite Plant








    Technical parameters:

    Type

    Power(V/Hz)

    concentration of liquid(mg/l)

    available chlorine (Kg/h)

    Flow (m3/h)

    Salt consumption (kg/d)

    Water consumption (m3/d)

    Power consumption   (kw)

    Size(m)      (l×w×h)

    CNJS-T30000

    380V/50Hz

    7-9

    30

    3.75

    2520

    60

    95

    1760*960*

    1980





    Work flow chart :





                            Automated Bleaching Sodium Hypochlorite Drinking Water / Sodium Hypochlorite Plant







    Automatic sodium hypochlorite generator system fully automatic production, contains the system



    A , Automatic dissolving salt tank :Including salt tank , liquid level control , dissolving salt pump , electric valves , piping and other components which could automatic transmission salt , dissolving salt , saturated brine

    B , Saturated brine filter :Including stainless steel two precision filter ,primary filtering accuracy 50um, secondary filtration precision 5um, use PP filter , the filter can be easily replaced, ensure clean brine ;

    C , Dilute brine tank :The saturated brine and production water has been diluted with 2.5 % weak brine water , for the power solutions

    D , Sodium hypochlorite generator host machine :Including electrolytic cell , electrolysis power , intelligent control center PLC , the control element, man-machine interface , PC communication module, the operator panel, the host stand, electric valves, electrical power distribution system

    E , Sodium hypochlorite solution storage tank :including hydrogen storage tank , exhaust equipment

    F , Automatic dosing and on-line monitoring system: including the inverter , corrosion metering dosing pump , online residual chlorine monitor , and the closed-loop control of chlorine

    G , Online instrument series : Production water pressure monitoring , dilute brine online salinity monitoring , temperature controller , flammable gas monitoring sensor , these monitoring instruments are all included alarm signal output





    Advantage on CNJS Products :



     ◆ The only material needed are salt and water . Salt can be safe and convenient transportation, storage, without any volatile and other toxic, no focus on chlorine needed hazards monitoring requirements on terror



    ◆ DC low voltage electrolysis, no high pressure, steam, heat and other hazards



    ◆ Sodium hypochlorite generator machine got a failure, just shut down and will not cause any harm to the equipment, personnel or nearby residents around.

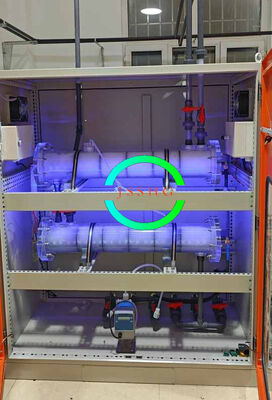

    details:



                                           Automated Bleaching Sodium Hypochlorite Drinking Water / Sodium Hypochlorite Plant

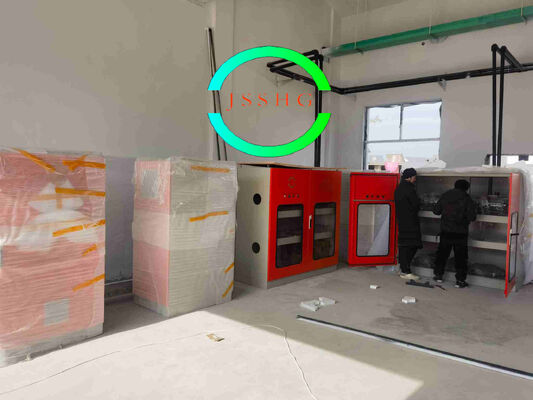

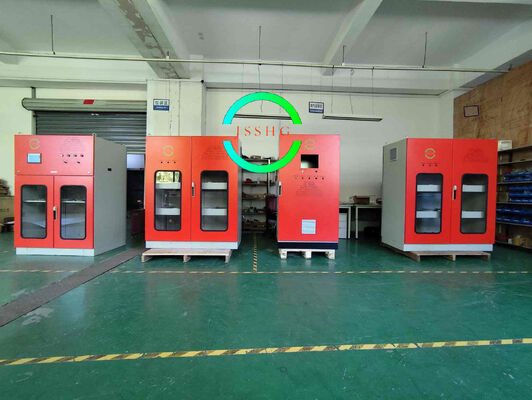

    Workshop :



    Automated Bleaching Sodium Hypochlorite Drinking Water / Sodium Hypochlorite Plant
