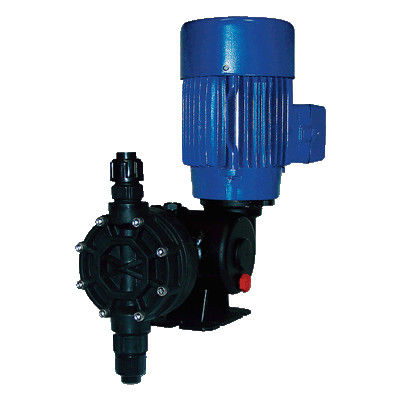

Corrosion Resistant Sodium Hypochlorite Dosing System Metering Diaphragm Pump

Corrosion Resistant Sodium Hypochlorite Dosing System Metering Diaphragm Pump

    • Corrosion Resistant Sodium Hypochlorite Dosing System Metering Diaphragm Pump
    • Corrosion Resistant Sodium Hypochlorite Dosing System Metering Diaphragm Pump
    • Corrosion Resistant Sodium Hypochlorite Dosing System Metering Diaphragm Pump
    • Corrosion Resistant Sodium Hypochlorite Dosing System Metering Diaphragm Pump
  • Corrosion Resistant Sodium Hypochlorite Dosing System Metering Diaphragm Pump

    Product Details:

    Place of Origin: CHINA
    Brand Name: CNJS
    Certification: ISO9001
    Model Number: New dose DFD

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: NEGOTIATION
    Packaging Details: wooden case
    Delivery Time: 7-15 work days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100 SETS /month
    Contact Now
    Detailed Product Description
    High Light:

    Diaphragm Metering Pumps

    ,

    Residual Chlorine Analyzer


    Corrosion Resistant Sodium Hypochlorite Dosing System Metering Diaphragm Pump


    DFD characteristics of electromagnetic diaphragm metering pumps :

    1. Corrosion plastic housing ( ABS + polycarbonate ) ;
    2. IP65 degree of protection ;
    3. The corrosion resistant pump head : PP, PVC, PTFE, SS 316;
    The corrosion resistant Diaphragm : Full PTFE diaphragm, a special process structure, never corrupted ;
    5. The double ball way valve : sealing effect doubled ;
    6. Eye-catching visual user interface : LED digital display of the current metering pump operating frequency or frequency division multiplication factor, five operating buttons ( START / STOP , ∨ , ∧ , A / M , ADJ ) . START / STOP to start and stop the metering pump , ∧ to increase the flow of metering pumps , ∨ for reducing the flow rate of the metering pump . A / M to switch the metering pump works , ADJ for setting various control parameters . Flow 0-100% adjustable , intelligent digital design, analog circuit abandons adjustment potentiometer and linear drift error caused by bad , avoid traffic caused due to loss of lock when adjusting stroke lead to instability phenomenon , making metering pump flow more accurate , higher repeatability ;
    7.A wider range of power supply design :180-250VAC 50-60HZ
    8.Powerful control functions: metering pump has two operating modes 1) power protection mode: in this case, the metering pump automatically after power is stopped, to prevent the conditions are not met due to other devices automatically start pump dosing damage to to equipment or personal; 2) power storage : in this case , the metering pump automatically into the state before the power failure after power . The original is running , metering pump continues

    Total of three series DFD.DM.DP, details are as follows :
    DFD series electromagnetic diaphragm
    Corrosion plastic
    Full PTFE diaphragm
    According to protection degree IP55 design
    A variety of materialsOptional head :PP,PVC,PTFE,SS316
    Double ball check valve
    Frequency adjustment :10-100%
    Manual adjustment , paneldisplay
    DFD series of electromagnetic diaphragm metering pump selection parameter
    Type Flow L/H Pressure BAR Stroke frequency Suction M Weight KG Power Power supply
    DFD-02-07-L 2 7 120 2 3.5 30 220V 50HZ
    DFD-02-16-X 2 16 120 2 3.5 65 220V 50HZ
    DFD-03-07-L 3 7 120 2 3.5 30 220V 50HZ
    DFD-06-05-L 6 5 120 2 3.5 30 220V 50HZ
    DFD-06-07-X 6 7 120 2 3.5 65 220V 50HZ
    DFD-09-03-L 9 2 120 2 3.5 30 220V 50HZ
    DFD-09-07-X 9 7 120 2 3.5 65 220V 50HZ
    DFD-12-07-X 12 7 120 2 3.5 65 220V 50HZ
    DFD-15-03-X 15 3 120 2 3.5 65 220V 50HZ
    DFD-20-03-X 20 3 160 2 3.5 65 220V 50HZ
    DFD-30-03-X 30 3 160 2 4 65 220V 50HZ
    DFD-50-02-X 50 2 160 2 4 65 220V 50HZ




    DM series electromagnetic diaphragm
    Corrosion plastic
    According to protection degree IP55 design
    A variety of materialsOptional head :PP,PVC,PTFE,SS316
    Double ball check valve
    Frequency adjustment :10-100%
    Stroke adjustment : 10-100%
    Acceptable 0 / 4-20MA external current signal, the panel display, the starting point can be set, you can reverse the ratio, automatic adjustment.
    Type Flow L/H Pressure BAR Stroke frequency Suction M Weight KG Power  Power supply
    DM-02-07-L 2 7 120 2 3.5 30 220V 50HZ
    DM-02-16-X 2 16 120 2 3.5 65 220V 50HZ
    DM-03-07-L 3 7 120 2 3.5 30 220V 50HZ
    DM-06-05-L 6 5 120 2 3.5 30 220V 50HZ
    DM-06-07-X 6 7 120 2 3.5 65 220V 50HZ
    DM-09-03-L 9 2 120 2 3.5 30 220V 50HZ
    DM-09-07-X 9 7 120 2 3.5 65 220V 50HZ
    DM-12-07-X 12 7 120 2 3.5 65 220V 50HZ
    DM-15-03-X 15 3 120 2 3.5 65 220V 50HZ
    DM-20-03-X 20 3 160 2 3.5 65 220V 50HZ
    DM-30-03-X 30 3 160 2 4 65 220V 50HZ
    DM-50-02-X 50 2 160 2 4 65 220V 50HZ







    DM series electromagnetic diaphragm
    Corrosion plastic
    According to protection degree IP55 design
    A variety of materialsOptional head :PP,PVC,PTFE,SS316
    Double ball check valve
    Frequency adjustment :10-100%
    Stroke adjustment : 10-100%
    Key operation, receiving the pulse signal, the panel display, built-multiplication, division, automatic adjustment.
    Type Flow L/H PressureBAR Stroke frequency Suction M Weight KG Power  Power supply
    N/M
    DP-02-07-L 2 7 120 2 3.5 30 220V 50HZ
    DP-02-16-X 2 16 120 2 3.5 65 220V 50HZ
    DP-03-07-L 3 7 120 2 3.5 30 220V 50HZ
    DP-06-05-L 6 5 120 2 3.5 30 220V 50HZ
    DP-06-07-X 6 7 120 2 3.5 65 220V 50HZ
    DP-09-03-L 9 2 120 2 3.5 30 220V 50HZ
    DP-09-07-X 9 7 120 2 3.5 65 220V 50HZ
    DP-12-07-X 12 7 120 2 3.5 65 220V 50HZ
    DP-15-03-X 15 3 120 2 3.5 65 220V 50HZ
    DP-20-03-X 20 3 160 2 3.5 65 220V 50HZ
    DP-30-03-X 30 3 160 2 4 65 220V 50HZ
    DP-50-02-X 50 2 160 2 4 65 220V 50HZ
