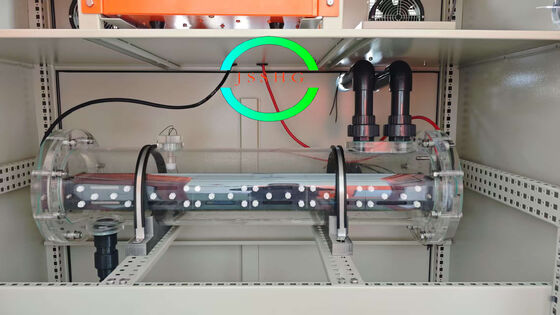

Fully transparent electrolytic cell

  The following figure:

               Our electrolyzer is the only fully transparent design in China, including flanges. When dilute brine is electrolyzed, the electrolytic state is clear at a glance. For electrolysis, the most important thing to pay attention to is whether the electrolytic cell is scaling and whether the electrode works in a safe state. The fully transparent electrolytic cell can visually see the actual situation, so as to better protect the electrolytic cell. The electrolyzer is equipped with liquid level protection, low temperature protection, high temperature protection, low current protection, ultra-high current protection, low voltage protection and ultra-high voltage protection. Once there is an abnormality, the system will send an alarm signal and stop working.

Electrode

Electrode plate:

Plate electrode. The anode and cathode base materials of the electrode are all made of pure titanium TA1 material. In the electrolysis process, the cathode is protected, while the anode is lost, so the anode surface must be protected by coating. The anode surface of Jiashang generator electrode is coated with ruthenium and iridium oxide with particle fineness of 20 nm after nano technology treatment. The coating is divided into more than 18 times, and the coating thickness is 20 microns, which can ensure the long-term Stable service life.

Service life: Jiashang company guarantees the electrode of Jiashang full series sodium hypochlorite generator for 5 years;
