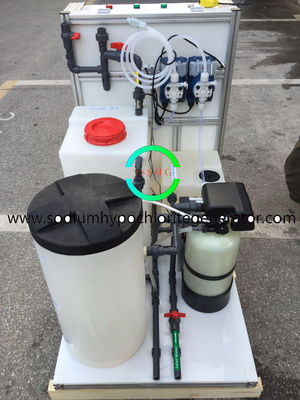

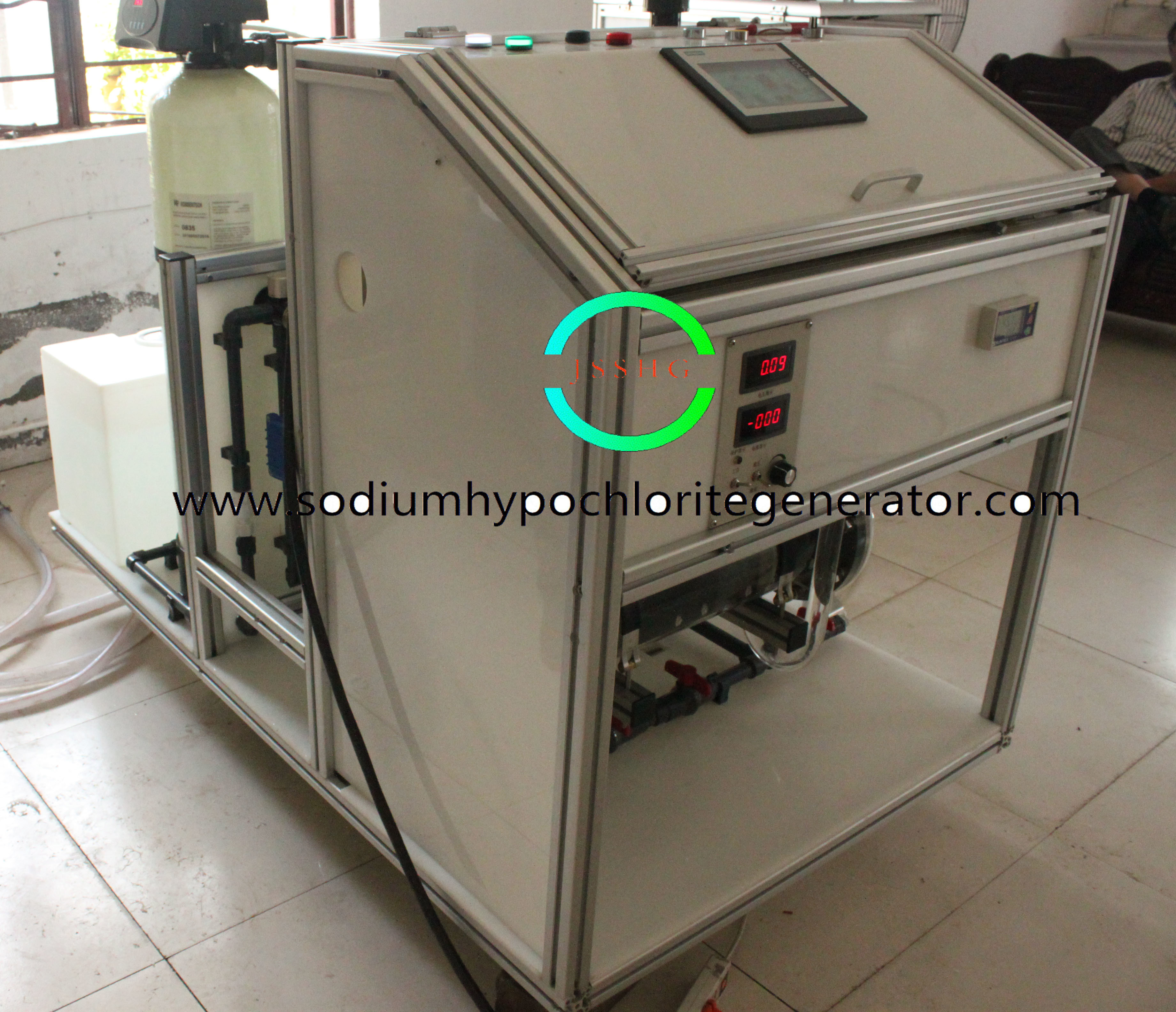

Disinfection Brine Electrolysis Sodium Hypochlorite Production Plant 400G/H

Disinfection Brine Electrolysis Sodium Hypochlorite Production Plant 400G/H

    • Disinfection Brine Electrolysis Sodium Hypochlorite Production Plant 400G/H
    • Disinfection Brine Electrolysis Sodium Hypochlorite Production Plant 400G/H
    • Disinfection Brine Electrolysis Sodium Hypochlorite Production Plant 400G/H
  • Disinfection Brine Electrolysis Sodium Hypochlorite Production Plant 400G/H

    Product Details:

    Place of Origin: CHINA
    Brand Name: CNJS
    Certification: ISO9001
    Model Number: CNJS-S-400

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: NEGOTIATION
    Packaging Details: wooden case
    Delivery Time: 7-15 work days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100 SETS /month
    Contact Now
    Detailed Product Description
    Available Chlorine: 0.8% Inlet Water Temperature: 5-27℃
    Inlet Water Pressure: 0.2-0.4Mpa Electrolytic Liquid: 2.5~3% Weak Brine
    Content Available CL: 7000~9000ppm Rated Current: Determined According To The Selected Product Model
    Working Way: 24 Hours Automatic Market: Globle
    High Light:

    Onsite Sodium Hypochlorite Generation

    ,

    Sodium Hypochlorite Solution For Disinfection



    Disinfection Brine Electrolysis Sodium Hypochlorite Production Plant 400G/H




    Technical parameters :



    Type :CNJS-S 400



    Available chlorine ( g/ h) : 400



    Flow ( L/h) :50



    Salt consumption ( kg /h ) :1.4



    Rated power (kw) :2.3



    Size (mm)( L×W×H) :1280*1980*1260




    Product feature:









    Chlorine concentration brine



     2.5%



    Power consumption



    less than 3.5KW/ kg



    Content available CL



    7000~9000ppm



    Working way



    Unattended , fully automatic operation



    Life expectancy of anode coating



    more than 5 years, and anode coating can be coated and used repeatedly



    Life expectancy of the electrode plates



    more than 20 years



    Life expectancy of whole machine



    more than 15 years







    Principle :





    the main role of sodium hypochlorite disinfection is through its form hypochlorous acid hydrolysis, hypochlorous acid further break down to form new ecological oxygen [O] , new ecological oxygen strong oxidizing substances such as bacteria and virus on the protein denaturation, which kill pathogenic microbes.





    Second, hypochlorous acid in the process of sterilization, kill the virus, not only can be applied to the cell, the virus shell, and for small hypochlorous acid molecules, without charge, also can penetrate the bacteria (virus) in the body, and bacteria (virus) protein, nucleic acid and enzyme oxidizing reaction of organic polymer, so as to kill the pathogenic microorganisms.





    Again, hypochlorite produced chlorine ion can significantly change the bacteria and virus, the osmotic pressure of the body, make the loss of activity and cell death.











    Work flow chart :



    Disinfection Brine Electrolysis Sodium Hypochlorite Production Plant 400G/H



    Product system









    Filter part  :



    Secondary PP material , 5 um level precision filter, salt can be completely filtering impurities.


    Dosing part :

    Mainly includes dosing pump



    Electrode part :



    Mainly includes the electrode slice and terminal



    Power part :



    Mainly includes the high frequency power switch and controller.



    why choose on CNJS Technology



    Safety

    Totally enclosed alumina framework , reduce the effect of environment on the equipment.

    All size of the equipment are equipped with strong fan , to ensure the safety during the operation of the           system.

    Industrial salt or refined salt all can suit for the equipment , so that in the absence of refined salt regional can be security work.



    Energy-saving

    Using high frequency power switch , silicon ballast power saving 20% electricity than any other manufacturer.

    All equipment intelligent makes each part  more accurate.



    Environmental protection

    All equipment material is wading level standard, real national wading documents.

    All equipment product will not cause secondary pollution to environment.

    Efficient



    Good disinfection effect

    Truly unattended equipment, the efficiency is greatly increased.



    The equipment safety reasons :





    The only needed raw material:


    Salt can be safe and convenient transportation , storage , without any volatile and other toxic , no focus on chlorine needed hazards monitoring requirements on terror



    Using DC low voltage electrolytic process , there is no high pressure , steam and heat hazards





    If the sodium hypochlorite generator machine got a failure, just stop it and not damage on the surrounding       equipment , staff or any surrounding residents.
