    High Security Chloride Brine Electrolysis System Environmental Protection





    Principle:



        CNJS - L series NaClO generator is a new type of NaClO solution for field production equipment , suitable for all kinds of needs NaClO disinfected venues. Its working principle is:



    anode:2Cl--2e→Cl2

    cathode:2H++2e→H2



    High Security Chloride Brine Electrolysis System Environmental Protection
    Technical parameters:

    Type

    Power(V/Hz)

    concentration of liquid(mg/l)

    available chlorine (Kg/h)

    Flow (m3/h)

    Salt consumption (kg/d)

    Water consumption (m3/d)

    Power consumption   (kw)

    Size(m)      (l×w×h)

    CNJS-L10000

    380V/50Hz

    7-9

    10

    1.25

    840

    30

    32

    1200*860*

    1950







    Work flow chart :

    High Security Chloride Brine Electrolysis System Environmental Protection



    Automatic sodium hypochlorite generator system fully automatic production, contains the system



    A, Automatic dissolving salt tank :Including salt tank , liquid level control , dissolving salt pump , electric valves , piping and other components which could automatic transmission salt , dissolving salt , saturated brine

    B, Saturated brine filter :Including stainless steel two precision filter ,primary filtering accuracy 50um, secondary filtration precision 5um, use PP filter , the filter can be easily replaced, ensure clean brine ;

    C, Dilute brine tank :The saturated brine and production water has been diluted with 2.5 % weak brine water , for the power solutions

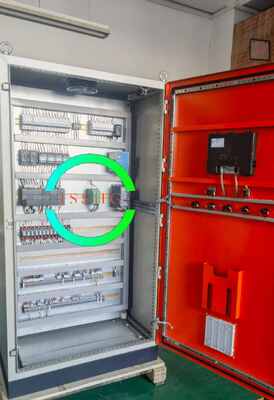

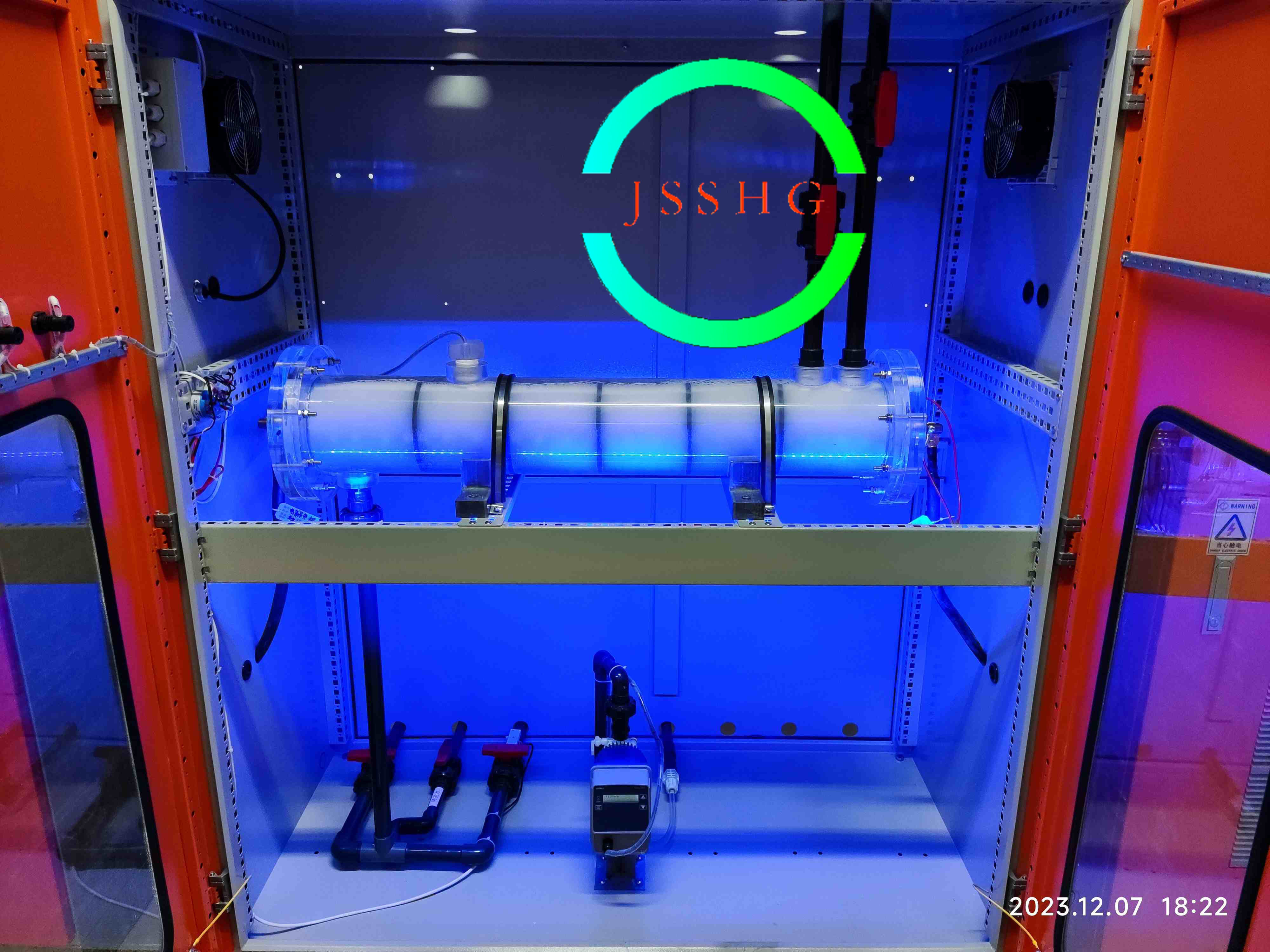

    D, Sodium hypochlorite generator host machine :Including electrolytic cell , electrolysis power , intelligent control center PLC , the control element, man-machine interface , PC communication module, the operator panel, the host stand, electric valves, electrical power distribution system

    E, Sodium hypochlorite solution storage tank :including hydrogen storage tank , exhaust equipment

    F, Automatic dosing and on-line monitoring system: including the inverter , corrosion metering dosing pump , online residual chlorine monitor , and the closed-loop control of chlorine

    G,Online instrument series : Production water pressure monitoring , dilute brine online salinity monitoring , temperature controller , flammable gas monitoring sensor , these monitoring instruments are all included alarm signal output



    Advantage on CNJY Products :

    High Security Chloride Brine Electrolysis System Environmental Protection

    For CNJS technology: 2 mm base material, titanium of the nanoscale ruthenium iridium oxide coating on the over 25 times coating, coating thickness up to 20 microns adhesion, long service life.

    High Security Chloride Brine Electrolysis System Environmental Protection
    Other manufacturers: electrode thickness is only 1.0 mm, common ruthenium iridium thickness thin, easy to deformation. After scaling easy to short circuit, the above is scaling electrode after burn.



    details:

                             High Security Chloride Brine Electrolysis System Environmental Protection

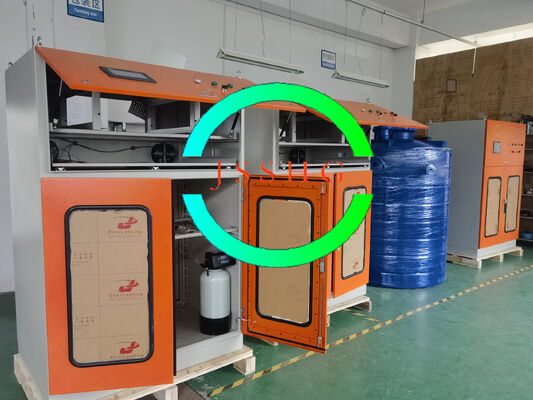

    Workshop :

    High Security Chloride Brine Electrolysis System Environmental Protection
