    Product Details:

    Place of Origin: CHINA
    Brand Name: CNJS
    Certification: ISO9001
    Model Number: CNJS-R

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: NEGOTIATION
    Packaging Details: wooden case
    Delivery Time: 7-15 work days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100 SETS /month
    Contact Now
    Detailed Product Description
    Available Chlorine: 0.8% Inlet Water Temperature: 5-27℃
    Inlet Water Pressure: 0.2-0.4Mpa Salt Consumption: 3.5kg/kg Cl2
    Water Consumption: 125L/kg Cl2 Electrolytic Liquid: 2.5~3% Weak Brine
    Content Available CL: 7000~9000ppm Rated Current: Determined According To The Selected Product Model



    500g/h Sodium Hypochlorite Water Treatment Sea Water Electrolysis Of Brine





    Technical parameters:



    Type

    Av.CL2 Capacity
     (g/h)

    Flow Rate
     (L/h)

    Salt Consumption
     (kg/d)

    Water
    Consumption
    (m3/d)

    Rated power
     (kw )

    Unite size
     (L×W×H)
    (mm)

    CNJS-R-100

    100

    13

    8.4

    0.31

    0.6

    1200×800×1400

    CNJS-R-200

    200

    25

    16.8

    0.6

    1.2

    1200×800×1400

    CNJS-R-300

    300

    38

    25.2

    0.91

    1.8

    1200×800×1400

    CNJS-R-400

    400

    50

    33.6

    1.2

    2.4

    1200×800×1400

    CNJS-R-500

    500

    63

    42

    1.51

    3

    1200×800×1400


    Note:System requirements with salt and water


    Salt requirements:



    Name

    Request content( %)

    (NaCl)

    >99.3 %

    (Fe)

    <0.002%

    (Ca Mg)

    <0.023%

    (Mn)

    <0.00003%

    (Pb)

    <0.0007%

    (Cu)

    <0.0003%

    (F)

    <0.01%



    Water requirements:
    1)Operating water temperature:
    The temperature between (18˚C-23˚C)is best. If do not use temperature regulation, please allow the temperature between (10˚C-27˚C),or a heating exchanger or chiller equipment to be used for adjust the water temperature.
    2)Operating water pressure:
    Minimum 0.2 MPa, Maximum 0.35 Mpa, if not in this scope, need to increase a he pressure or vacuum equipment
    3)water quality requirements:
    pH 6.5 to 8.5
    hardness[in calcium carbonate] < 5 ppm (soft water equipment outlet)
    COD(Mn) < 1.5 ppm
    Fe < 0.2  ppm
    Mn < 0.01 ppm
    Ni < 5 ppm
    F <2 ppm
    Cu < 5 ppb





    Product introduction:

    Generation principle:

        The revolutionary CNJS-Rseries sodium hypochlorite generator is a newly and for on-site product of NaClO equipment and use for all kinds of needed NaClO disinfected. Its working principle is :the sodium chloride solution under the certain voltage effect of the cell, a series of electrochemical reaction within the cell and the resulting solution is the NaClO solution. The main process can be simplified as follows:

    500g/h Sodium Hypochlorite Water Treatment Sea Water Electrolysis Of Brine
    The electrode reaction:
    anode:2Cl--2e→Cl2
    cathode:2H++2e→H2

    Work flow chart:


    500g/h Sodium Hypochlorite Water Treatment Sea Water Electrolysis Of Brine

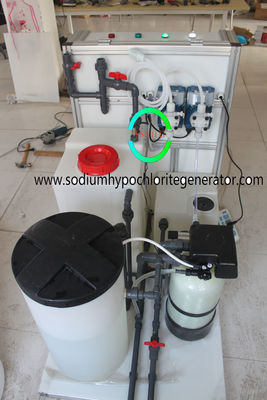

    Product components system

    500g/h Sodium Hypochlorite Water Treatment Sea Water Electrolysis Of Brine

    A,inlet water distribution system
    Main components: water pressure gauge, water softener, soft water pump, water meter, salt tank, salt water pump and related piping and valves.

    B,The power control system:
    Including control cabinet, rectifier and cable connection.

    C,Storage and dosing system
    Including electrolytic cell, NaClO tank, dosing pump, piping and valves.



    Advantage of on-site sodium hypochlorite generator for landscape water treatment :

    General landscape pool is in the basement, and security is very important, the advantages of CNJY equipment only need to add salt , no pollution, the liquid is safe too.

    High intelligent degree , truly unattended , without high-tech professionals .

    Environmental protection, from raw material to the cast and no secondary pollution to the environment. Can meet the higher requirements to the environment.

    High efficiency , stable equipment is for on site preparation liquid concentration ,  high disinfection effect.



    DETAILS:



    500g/h Sodium Hypochlorite Water Treatment Sea Water Electrolysis Of Brine





     500g/h Sodium Hypochlorite Water Treatment Sea Water Electrolysis Of Brine
